Intelligent Multi-function Quinoa Color Sorter Machine Color Sorting Machine

Product Categories
Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Intelligent Multi-function Quinoa Color Sorter Machine Color Sorting Machine from wholesalers

    Buy cheap Intelligent Multi-function Quinoa Color Sorter Machine Color Sorting Machine from wholesalers
    • Buy cheap Intelligent Multi-function Quinoa Color Sorter Machine Color Sorting Machine from wholesalers
    • Buy cheap Intelligent Multi-function Quinoa Color Sorter Machine Color Sorting Machine from wholesalers
    • Buy cheap Intelligent Multi-function Quinoa Color Sorter Machine Color Sorting Machine from wholesalers
    • Buy cheap Intelligent Multi-function Quinoa Color Sorter Machine Color Sorting Machine from wholesalers

    Intelligent Multi-function Quinoa Color Sorter Machine Color Sorting Machine

    Ask Lasest Price
    Brand Name : WENYAO
    Model Number : WYCS2-128
    Certification : CE & ISO9001
    Price : Negotiable Price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200PCS Per Month
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

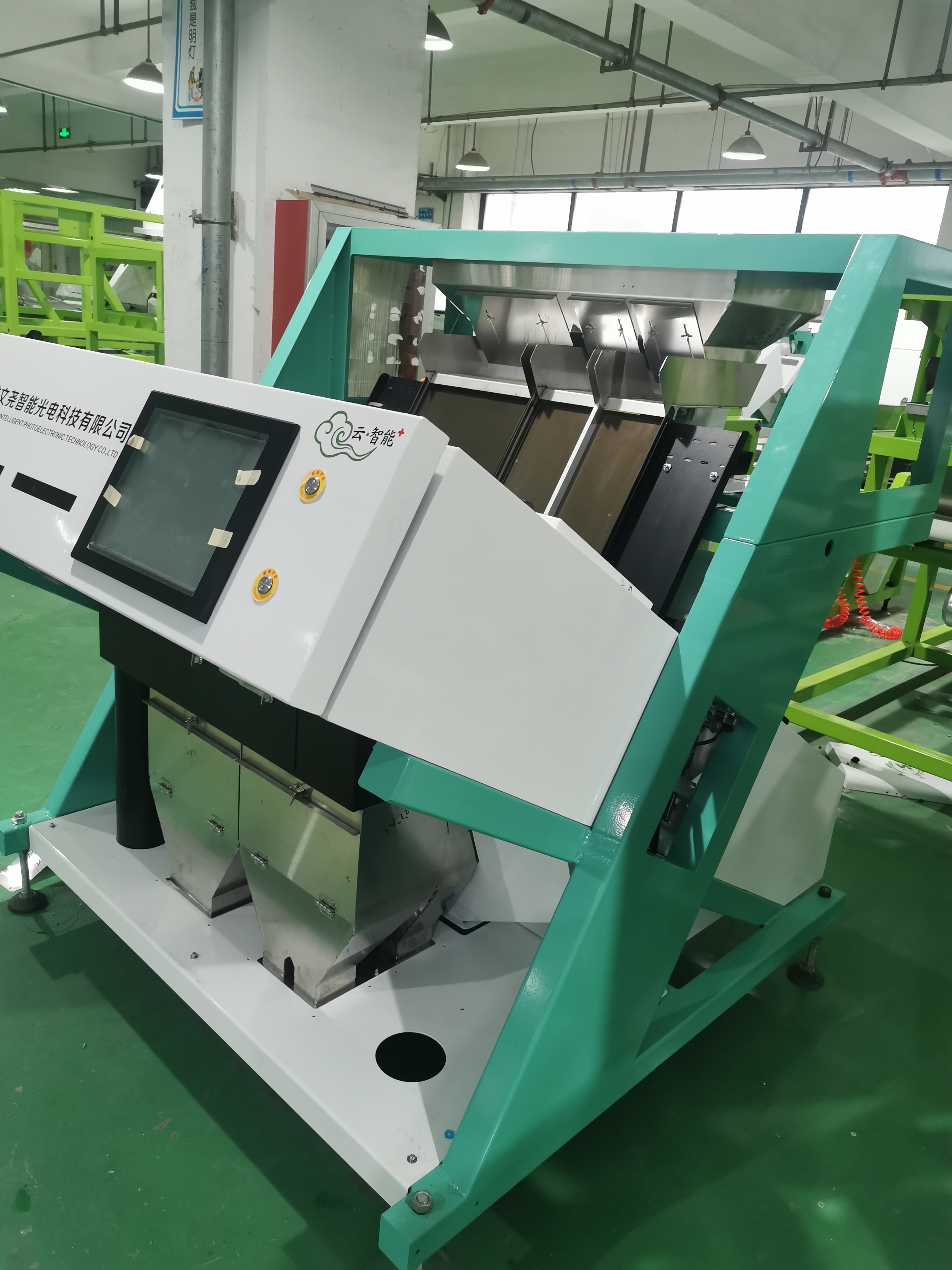

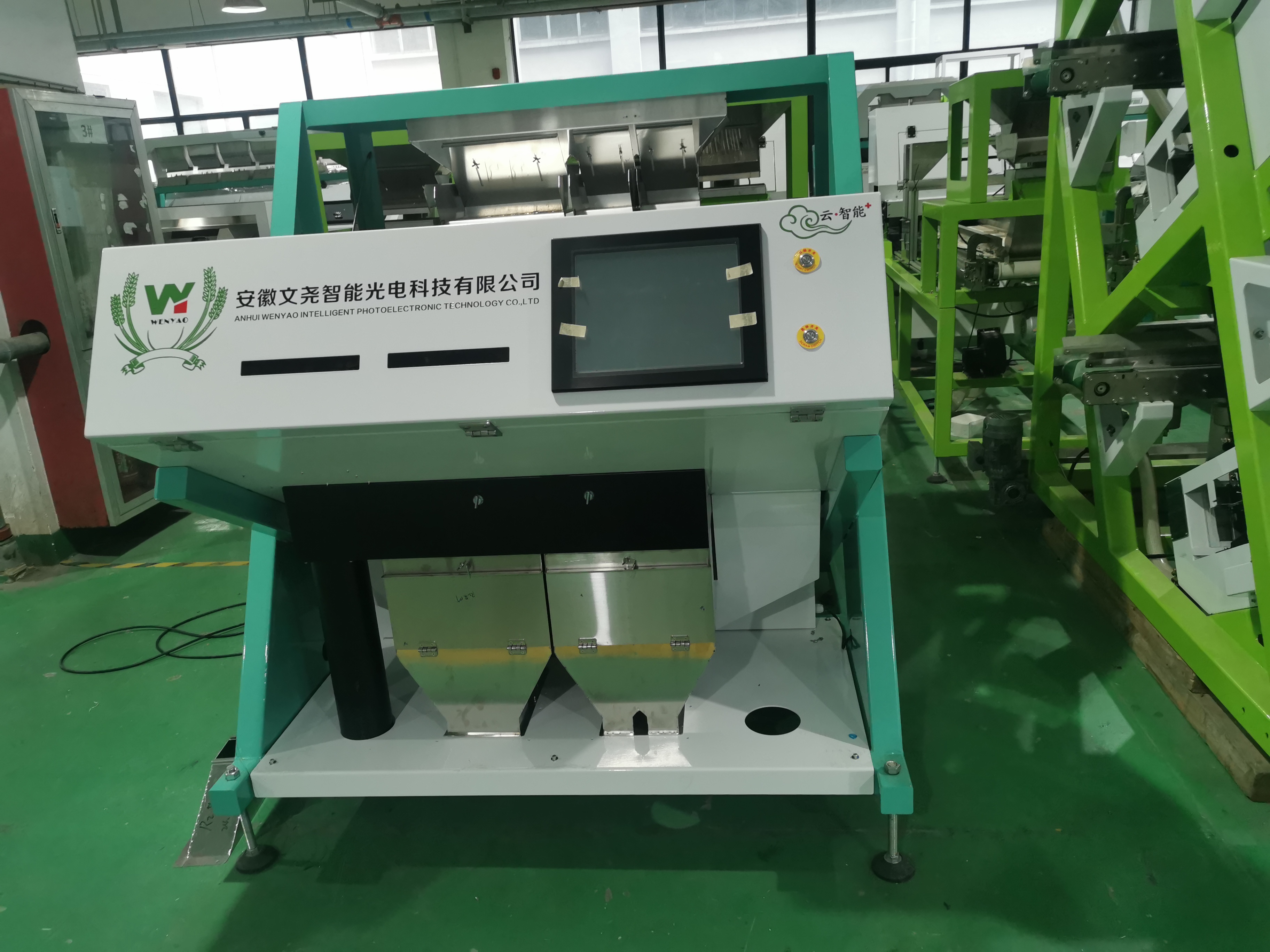

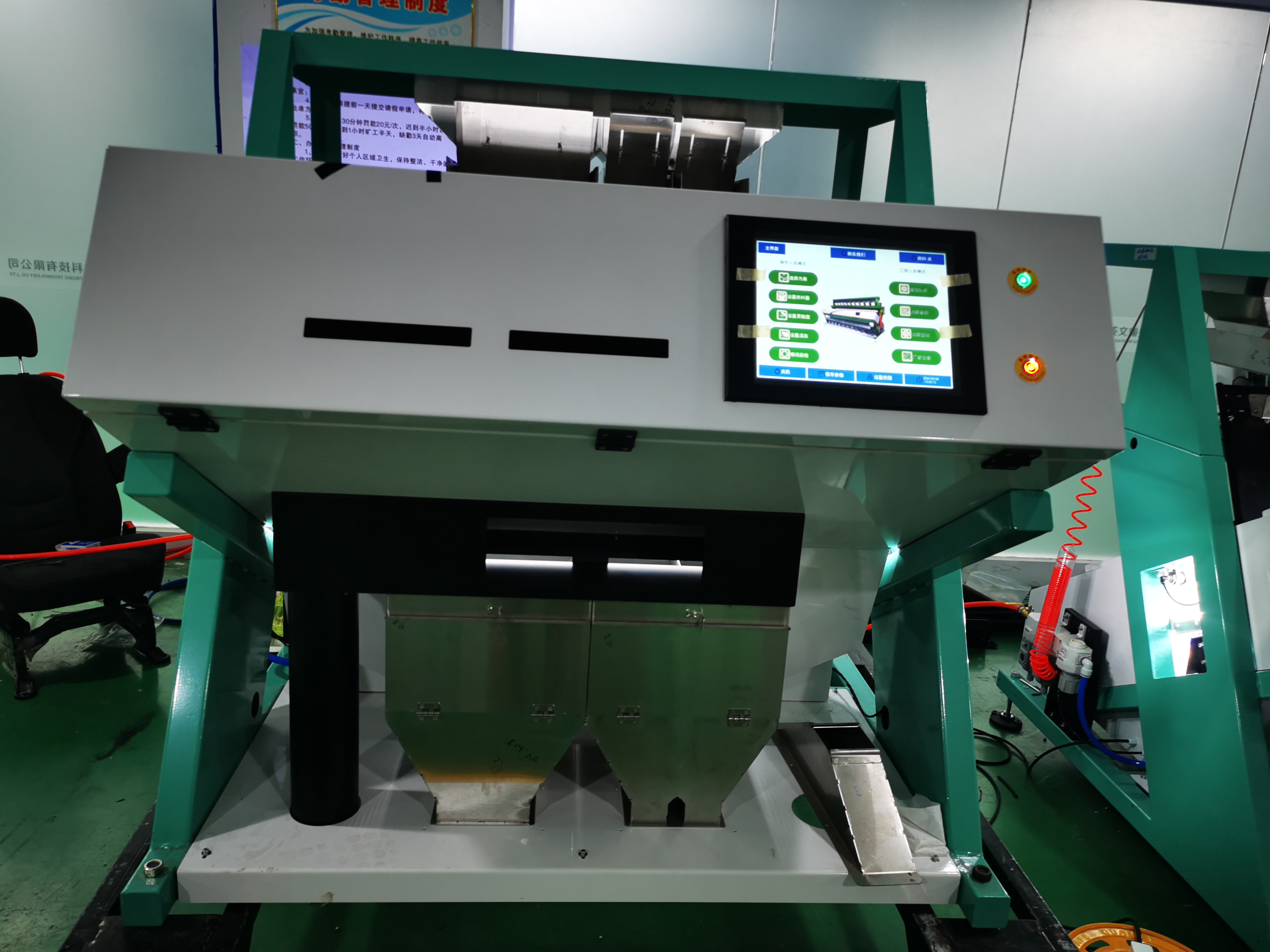

    Intelligent Multi-function Quinoa Color Sorter Machine Color Sorting Machine

    INTELLIGENT MULTI-FUNCTION QUINOA COLOR SORTER MACHINE COLOR SORTING MACHINE


    optic sorters can recognize objects' color, size and shape, can compare objects to user-defined accept/reject criteria to identify and remove defective products and foreign material from the production line, with the purpose of separating product of different grades and types of materials.


    color sorters are commonly applied in sorting of grain, coffee, peanuts, crops, beans, seeds, spices, nuts, rice, vegetables, fruits etc.


    Intelligent Multi-function Quinoa Color Sorter Machine Color Sorting Machine


    PARTS DETAILS:


    .INTELLIGENT OPERATION SYSTEM

    Overall Large Screen HD Operation control panel, 1080P Super high resolution,system more stable, more friendly Human-Machine-Interface panel, which gives high sensitivity instant fast repones in the industrial environment.

    NEWLY SPECIAL SUPER WIDTH CHUTE DESIGN

    Special technology chutes, applicable for universal materials,make the transfer more steady, more capacity.

    MECHNICAL RECONSTRUCTION

    Reconstrution of the mechnical frame, the main part with special material,balancing whole frame bearing, ensure the machine integrity. Working with the updated mechanism, it strength the base of the ultra-sorting.

    SELF-DEVELOPED SPRAY VALVE

    Self-developed spray valve, Self-developed high-performance spray valve, super high rapid response to the Algorithm results. It can continuously working 12billion+ times, extremely long life, with low air consumption,master the core technology.

    ILLIMITABLE SORTING POSSIBILITIES, START BY “ONE BUTTON” PRESSURING

    Hundred of sorting profiles can be saved in machine machine, for the variety products for sorting, subdivide the quality of agric and sideline products illimitable sorting possibilities,“one button”start, “one button”profiles exchange.


    SHADOWLESS COLD LIGHT SOURCE,AUTOMATICA ADJUSTABLE

    Extremely long life, low energy consumption intellligent shadowless cold light source, orthogonal spectrum technology, make the image more visiable, more accuracy detection; the output luminance of light source are automatically adjustable, it make the lights more stable with high quality. It is fully appliable for the camera to see and detect.



    Technical Parameters:

    MODELWYCS2-128
    Chutes/Channels2/128
    Throughput(t/h)2-3t/h
    Sorting Aaccuracy≥99.99%
    Power1.1kw
    Power Voltage180-240V/50Hz
    Air Source Pressure0.6-0.8Mpa
    Air Consumption<1.2M3/Min
    Weight450kg
    Diamension(L*W*H)1250*1535*1832mm

    Examples of color sorting:



    CCD Color Sorter Machine
    Among them, the photoelectric large bean color sorter is a popular style in the past few years. It is an ordinary photoelectric sensor. At present, the CCD sensor large bean color sorter is the most used in the market, and the maximum resolution is 5400 pixels. Speed line scan CCD

    The difference between the photoelectric color sorter and the CCD color sorter lies in the sensor. Because the CCD color sorter uses a high-definition CCD color sorting lens, the color sorting accuracy is improved from 2 square millimeters of the photoelectric color sorter to 0.040. 08 square millimeters, the color sorting accuracy is improved, and the CCD output color sorter is also greatly improved compared with ordinary photoelectric color sorters.


    Feature:
    1)     High resolution full color camera 5400 CCD sensor. High definition industrial lens.
    2) Human-computer interaction. Image Capture. Holographic Imaging. One-key automation. Automatic System Check.
    3) Sorting master. High quality ejector.Intelligent lighting source. Target orientation.
    4) Identification expert. Size identification. Texture identification. Shape identification. Edge identification. Sorting accuracy
    infinitely close to 100%.
    5) System Guard. Intelligent algorithm.Automatic rectification. Targeted dedusting.


    1. How to use the machine?
    We will supply the Installation instructions or video and our engineers will train your operators.

    2. How long about the guarantee period?
    One year. And we supply lifelong software upgrade services for our customers.
    3. Can you supply the air compressor, air tank and air filters?
    Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
    4. Is oversea service available?
    Yes, our engineers could go abroad when required.
    5.How to calculate Installation personnel cost?
    On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local transportation and security when the Engineer arrived.

    .


    Packing & Delivery



    Certificate :


    Intelligent Multi-function Quinoa Color Sorter Machine Color Sorting MachineIntelligent Multi-function Quinoa Color Sorter Machine Color Sorting Machine


    Contact :

    Intelligent Multi-function Quinoa Color Sorter Machine Color Sorting Machine
