High Capacity 8-10ton Per Hour Wheat Grain Color Sorter Optical
Sorting Machine
WENYAO grain sorter is a smart, automated color sorting machine
that helps you sort grains and remove any defects and foreign
materials with a high precision. With the breakthrough technology,
WENYAO color sorter provide a great benefits and are a creative
addition to businesses in the agricultural and food professing
field.
Sort a variety of grains, including wheat, oat, quinoa, barley ,
peanut , sorghum, coffee bean , corn and many more.
Consistent, high-quality with free software upgrade and data
back-up.
Fast communication system, giving you high speed while maintaining
accuracy.
Full-color high-definition CCD camera image acquisition system for
intelligent image processing, comprehensive sorting, and high level
of precision.
Free technical support and operating system training.
2-Year Long Time Quality Warranty
Technical Parameters:
| MODEL | WYCS8-512 |
| Chutes/Channels | 8/512 |
| Throughput(t/h) | 8-10t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 5kw |
| Power Voltage | 110V/220V/50Hz/60HZ |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 2000-4000L/Min |
| Weight | 1500kg |
| Diamension(L*W*H) | 3025*1540*1852mm |
Note: Different impurity with different throughput.
Features:
1. More high-end CCD camera, can distinguish flaw which are less
than 0.04 mm², glasses and resin etc, increase sorting impression
to a higher level.
2. Scientific and reasonable optics-design, more clear for light
yellow, distinguish wider rang.
3. Reasonable heat output device, ensure all spare parts be working
in the room tepurature, SNR is better, not only increased the
accuracy of sorting, but also extended the life of machine.
4. More intelligent software, can distinguish all kinds of
atherosclerosis grain easily and totally improved the accuracy of
selection.
5. Humanization true color screen, visual effect is more clear,
operation is more easier.
6. Professional high frequency ejectors, save more air, reaction
velocity is more quick, rate of accuracy is higher, and longer
life, working with intelligent software, ensure the good rejection
and excellent accuracy.
Examples of color sorting:
How to get the correct size and suitable price of wenyao color
sorter machine?
Step 1.Which kinds of the material do you want to sort ?
Step 2.How much input capacity for the raw materials per hour?
Step 3.In order to know the impurity rate of the raw materials
which are needed to be sorted, please send us 3 pictures as
following:
1. Raw material picture(feeding in the machine materials)
2. Accepted material picture(you want to save the good materials)
3. Rejected material picture(you want to sort out the bad
materials)

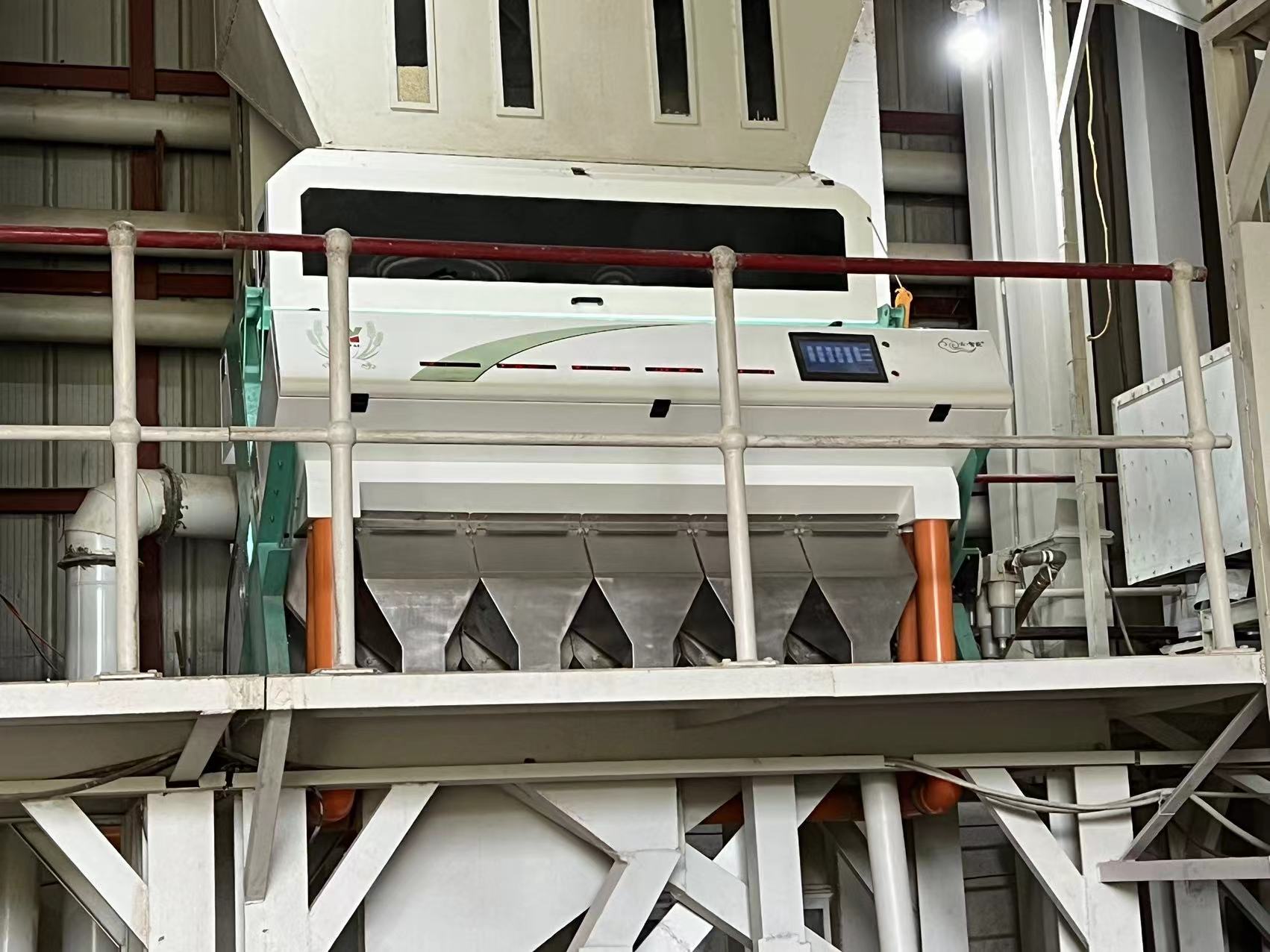

Sucessful cases
FAQ:
1. How to use the machine?
We will supply the Installation instructions or video and our
engineers will train your operators.
2. How long about the guarantee period?
Two years. And we supply lifelong software upgrade services for our
customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes
color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would
like to send engineer to guide for installation, then customer
should to pay the cost, including transaction of Engineer's visa,
transportation(air) for go abroad. and accommodation, local
transportation and security when the Engineer arrived.
Welcome your inquiry
