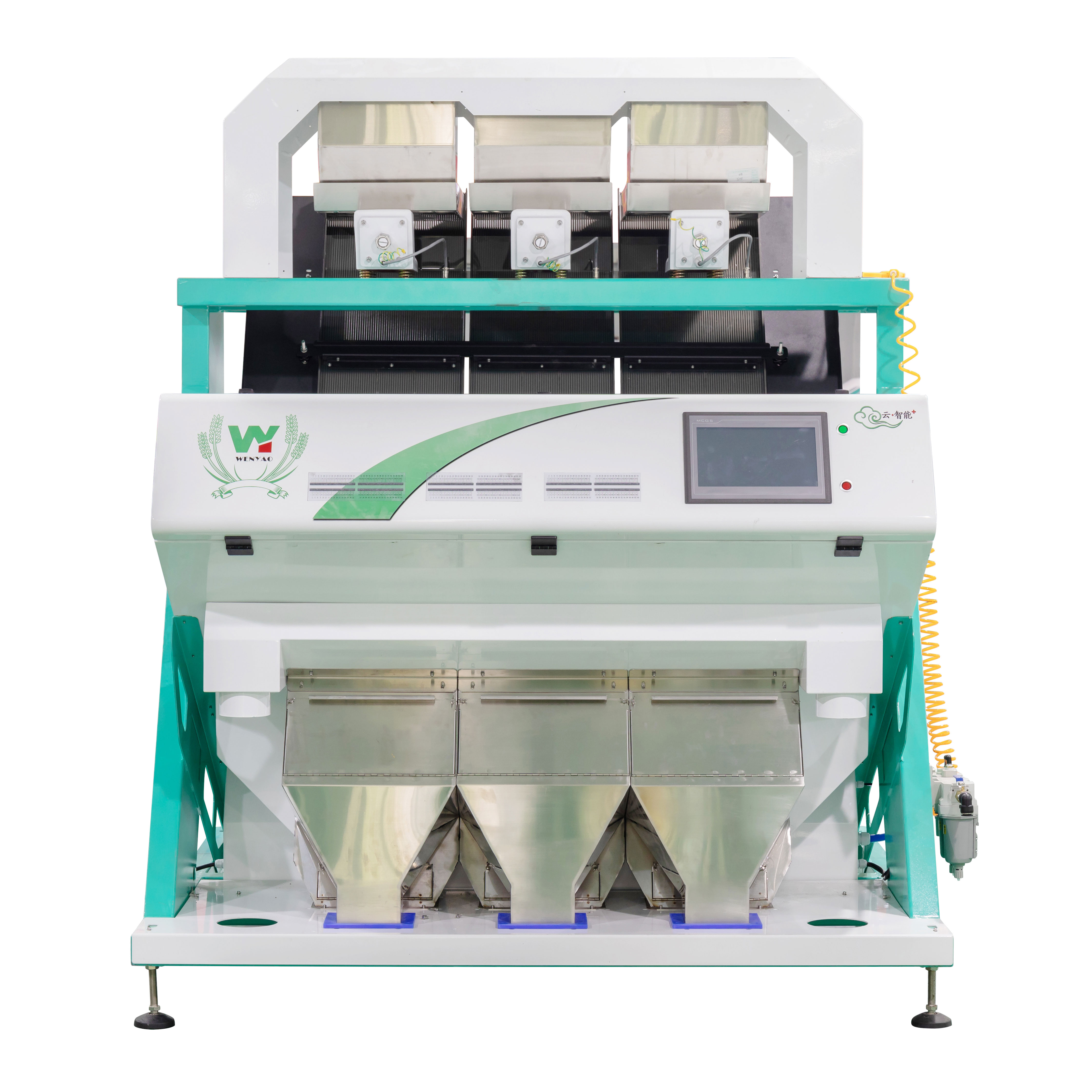

Best Color Sorter Walnut Color Sorter Macadamia Nut Color Sorter
Nuts Sorting Machine
Color sorter is a machine which used for separating the bad grain
from the raw material through the color difference between the
rejection and finished products. Wenyao color sorter adopting 5400
pixel high resolution CCD camera, advanced image analysis and
processing technology, long-life high-efficiency easy maintenance
ejector as well as excellent optical system.
Technical Parameters
| MODEL | WYCS3-192 |
| Chutes/Channels | 3/192 |
| Throughput(t/h) | 1-4 |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1.6kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 0.8-1.8M3/Min |
| Weight | 600kg |
| Diamension(L*W*H) | 1620*1535*1832mm |
Product Features
1. Remote interconnection: Easy connection of touch screen and
mobile devices, intelligent control to enjoy the wisdom of life.
2. Remote diagnosis: Start-up self checking of system can achieve
real-time monitoring of machine components, automatically judgement
and troubleshooting to ensure the normal operation of color sorter.
3. Remote upgrade: Intelligent self checking system realizes
one-key system upgrade and provides the best operation experience
4. Remote training: A efficient and convenient real-time
interactive training system developed independently, creating
non-distance service for users.
Device Features
1. Camera:use high standard to promise high precision work
International well-known brand customized lens, high-speed of
scanning, the highest resolution comes to 0.02 mm2.
2. High-frequency Solenoid Valve:leading in China
High working efficiency and high quality and high precision
solenoid valve, with consistency of near zero error, service life
more than 1 billion times.
3. Intelligent Image Processing Algorithm
The combination of colors and shapes of intelligent algorithm,
precise professional sorting solutions
4. Customized Lighting System:import purchasing
Advanced LED optical design system, Various light sources are
available to suit different materials.
Designated procurement of imported LED lamps,Higher stability,
longer service life. LED lighting system with thermal dissipation.
5. Data Transmission System:high-speed and stable
The COAX interface:High anti-jamming, high transmission speed, high
stability
6. Chip:innovative ultra high-speed processing
Based on SOC platform architecture;Compared to DSP platform, the
CPU improves 5 times, output processing improves 4 times, realizing
the stability ,reliability and high-speed mass data processing.
7. Feed Trough:
Special anodization treatment process ensures the required
production in line with the international first-class level.
Cascading flat plate and narrow chute channel can be outfitted to
sort a variety of material colors.
8. Human-Computer Interface:simple and easy to operate,more
intelligent, easy operation, one button for professional sorting,
remote, debugging, remote diagnosis, remote software upgrading.
Our service
--1)We can promise machine all details with high quality.
--2)The rice mill machine can be painted in different color
according to customers’ favor.
--3)Any time customers has problem for using the machine can
contact us, and also for large plant, we can send install video or
technical workers go to guide how to install and how to operate.
--4)Guaranty time for two years.
Color sorter application

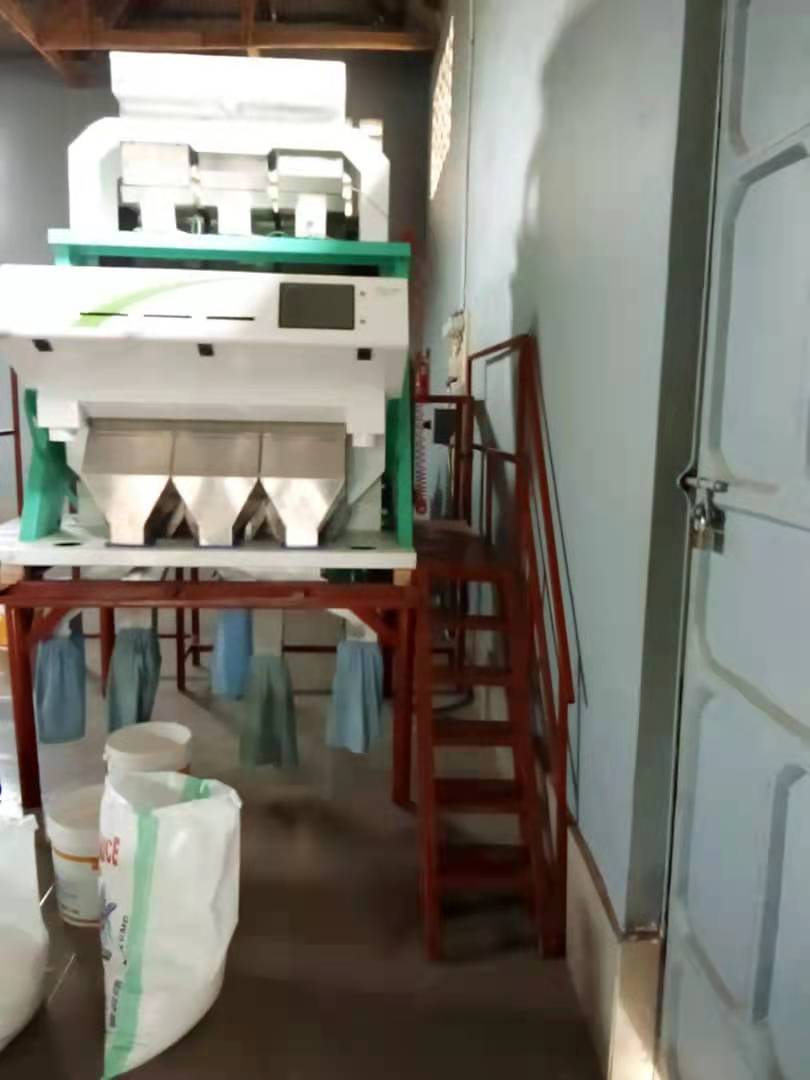

Our Custom's site
