    Popular Mini Ccd Rice Color Sorter 1 Chutes 64 Channels

    Ask Lasest Price
    Brand Name : WENYAO
    Model Number : WYCS1-64
    Certification : CE ISO9001
    Price : Negotiate price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200PCS Per Month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    Popular Mini Ccd Rice Color Sorter 1 Chutes 64 Channels

    Popular Mini Ccd Rice Color Sorter Grain Color Sorter Machine Rice Sorting Machine

    Mini Rice Color Sorter Rice Sorting Machine With CCD Camera Full Color


    Technical Parameters:

    MODELWYCS1-64
    Chutes/Channels1/64
    Throughput(t/h)1 Ton /H
    Sorting Aaccuracy≥99.99%
    Power0.75kw
    Power Voltage180-240V/50Hz
    Air Source Pressure0.6-0.8Mpa
    Air Consumption<0.6M3/Min
    Weight280kg
    Diamension(L*W*H)780*1527*1543mm

    1. Color high-resolution CCD image acquisition system

    Our color sorting uses color CCD image acquisition system, which can acquire full color information of red, green and blue material. This enables our sorter to better suit customers’ requirements.

    With a max resolution of 0.15mm, it can accurately detect the small defects and spots of beans .The high precision lens helps ensure the image more clear and accurate

    2. Specialized image processing algorithm

    Considering the complexity of beans , we use complicated regional classification method and realize material analysis and classification within the color gamut, so the accuracy of material identification is assured.

    3. Unique feeding system

    Due to its adjustable module design, the feeding system can accommodate various kinds of beans for a wider application range of color sorting

    Special chute design ensures the uniformity of material flow , the best image accquistion and defective material rejection effects can be achieved.

    4. Optional quality ejector

    For materials of small grains , the imported high frequency ejector is more effective .

    For materials of larger grain ,the imported large air flow high frequency ejector is more effective .

    5. High rejection rate

    High rejection rate is accomplished as a result of our high resolution CCD, unique feeding system , specialized algorithm and ejector.


    Examples of color sorting:


    Popular Mini Ccd Rice Color Sorter 1 Chutes 64 Channels

    Camera

    leading in the industry

    International well-known brand customized lens
    Import high-end 4096PIXEL CCD sensor
    High-speed of scanning
    The highest resolution comes to 0.02 mm²


    High-frequency Solenoid Valve

    leading in China

    High-quality high-frequency solenoid valve, with consistency of near zero error.

    Service life more than 1 billion times.
    Ultra high precision, leading in China


    Intelligent Image Processing Algorithm

    The combination of colors and shapes of

    intelligent algorithm
    Leading role in China.
    Precise professional sorting solutions


    Customized Lighting System

    import purchasing

    Advanced LED optical design system.
    Various light sources are available to suit different materials.
    Designated procurement of imported LED lamps,Higher stability, longer service life.
    LED lighting system with thermal dissipation.


    Data Transmission System

    high-speed and stable

    The COAX interface:
    High anti-jamming, high transmission speed, high stability


    Chip

    innovative ultra high-speed processing

    Based on SOC platform architecture;
    Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.


    Feed Trough

    special technology

    Application of high-quality 300mm ultra wide trough in China;

    Special anodization treatment process ensures the required production in line with the international first-class level;

    Cascading flat plate and narrow chute channel can be outfitted to sort a variety of material colors.


    Human-Computer Interface

    simple and easy to operate

    More intelligent, easy operation, one button for professional sorting, remote debugging, remote diagnosis, remote software upgrading.


    FAQ:

    1. How to install and use the machine?
    We will supply the Installating instructions or videos for the customers.If needful, our engineers will help the customers to train the operators.

    2. How long about the guarantee period?

    2 years. We supply lifelong software upgrade services for our customers.
    3. Can you supply air compressor, air tank and air filters?
    Yes, We can provide above equipments, Our standard offer includes color sorter machine,air compressor, air tank and filters.

    4. what about the after sales service?

    Yes, By videos or by remote control or local service or engineers could go abroad when required.

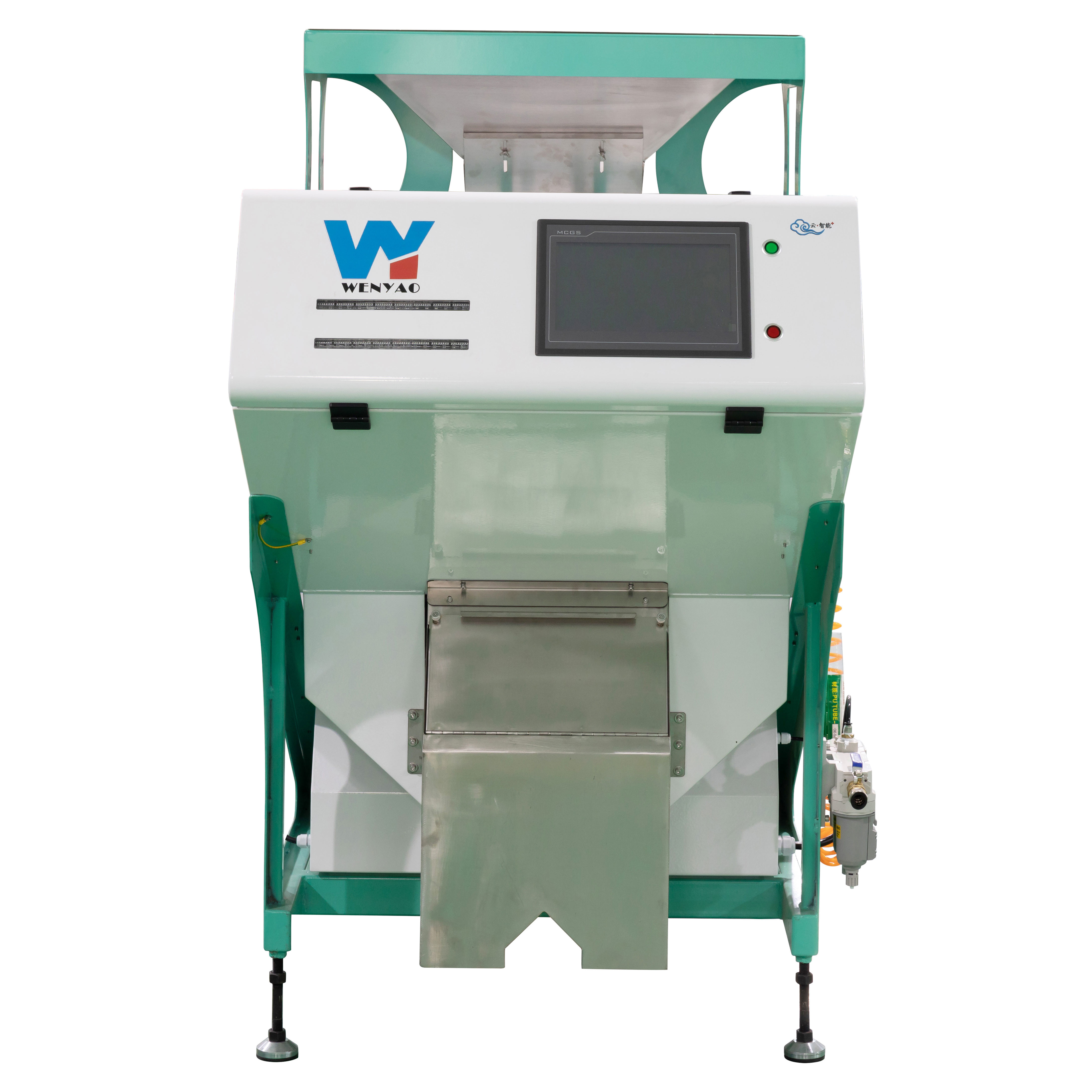

    Machine Pic :

    Popular Mini Ccd Rice Color Sorter 1 Chutes 64 ChannelsPopular Mini Ccd Rice Color Sorter 1 Chutes 64 ChannelsPopular Mini Ccd Rice Color Sorter 1 Chutes 64 Channels
