Intelligent Pepper Olive Peanut Color Sorter CCD Sorting Grading
Machine
Color Sorter Function:
When color sorter is working, feed hopper in the materials under
the action of vibrator is uniform distribution in each chute. The
CCD signal while the materials are dropping is in testing. If it is
found that there are unqualified materials or impurities in the
materials, the ejector will blow the defective goods in the hopper.
Photoelectric color sorter is a non-destructive sorting equipment
used for quality inspection and grading of bulk materials. It is
widely used in grain, food, pigment chemical industry and other
industries. , all kinds of beans, all kinds of rice, ore, pepper,
pepper, garlic, melon seeds, raisins, seeds, traditional Chinese
medicine, dried shrimps, small shrimp, cloves, glass, metal, the
same color rod and other malignant impurities and special materials
sorting The effects are very significant.
Technical Parameters
| Model | WYCS1-64 | WYCS2-128 | WYCS3-192 | WYCS4-256 |
| Chute/Channel | 1/64 | 2/128 | 3/192 | 4/256 |
| Throughput(t/h) | 1 Ton /H | 0.6-2.5 Ton /H | 1-4 Ton /H | 1.4-5 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 0.75kw | 1.1kw | 1.6kw | 2.3kw |
| Power Voltage | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 280kg | 450kg | 600kg | 750kg |
| Diamension(L*W*H) | L780*W1527*H1543mm | L1250*W1535*H1832mm | L1620*W1535*H1832mm | L1855*W1540*H1852mm |
| Model | WYCS5-320 | WYCS6-384 | WYCS7-448 | WYCS8-512 |
| Chute/Channel | 5/320 | 6/384 | 7/448 | 8/512 |
| Throughput(t/h) | 2-6 Ton /H | 2.5-8 Ton /H | 3-10 Ton /H | 3.5-12 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 2.9kw | 3.1kw | 3.9kw | 5kw |
| Power Voltag | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 900kg | 110kg | 1350kg | 1500kg |
| Diamension(L*W*H) | L2244*W1540*H1852mm | L2595*W1540*H1852mm | L2905*W1540*H1852mm | L2905*W1540*H1852mm |
Advantages:
►Intelligent dust cleaning system,It means you can set cleaning
time and period according to your need.
►WIFI remote control system,It means color sorter connecting to the
internet,You can use mobile phone or computer to operate color
sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so
on more than 20 languages.
►Self design high frequency ejectors,It means high speed and
accurate sorting performance.
►5400Pixel CCD image acquisition system with high speed chip.
►Low temperature LED light source system,Cooling system to make the
LED lamp more long life.
►Automatic computing and intelligent identification with high speed
camera.
High Performance Sorting Performance for Reference
Key Components

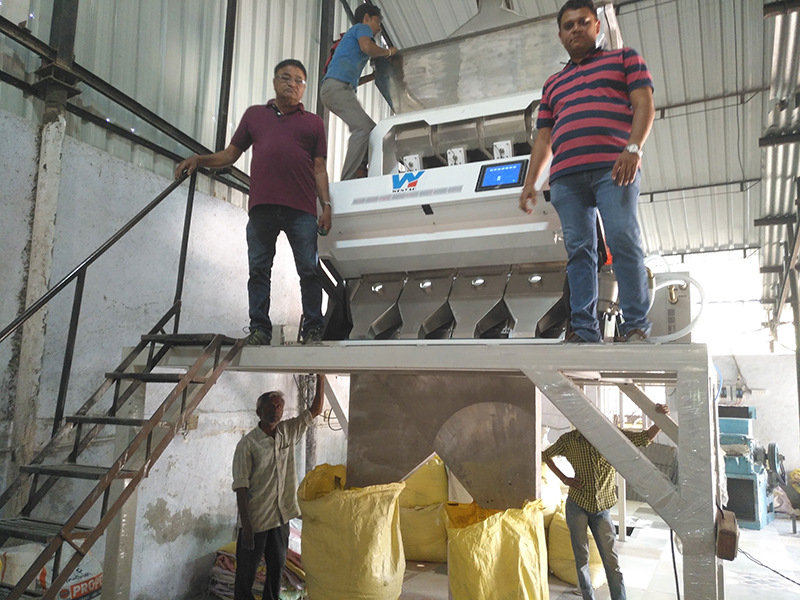

Customer Cases:
We have another item model machines. The functions are all the
same.The difference are the capacities.Now we will attach the
various model pictures as the followings.
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the
clinets.If needful, our engineers will help the clients to train
the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our
customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes
color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
