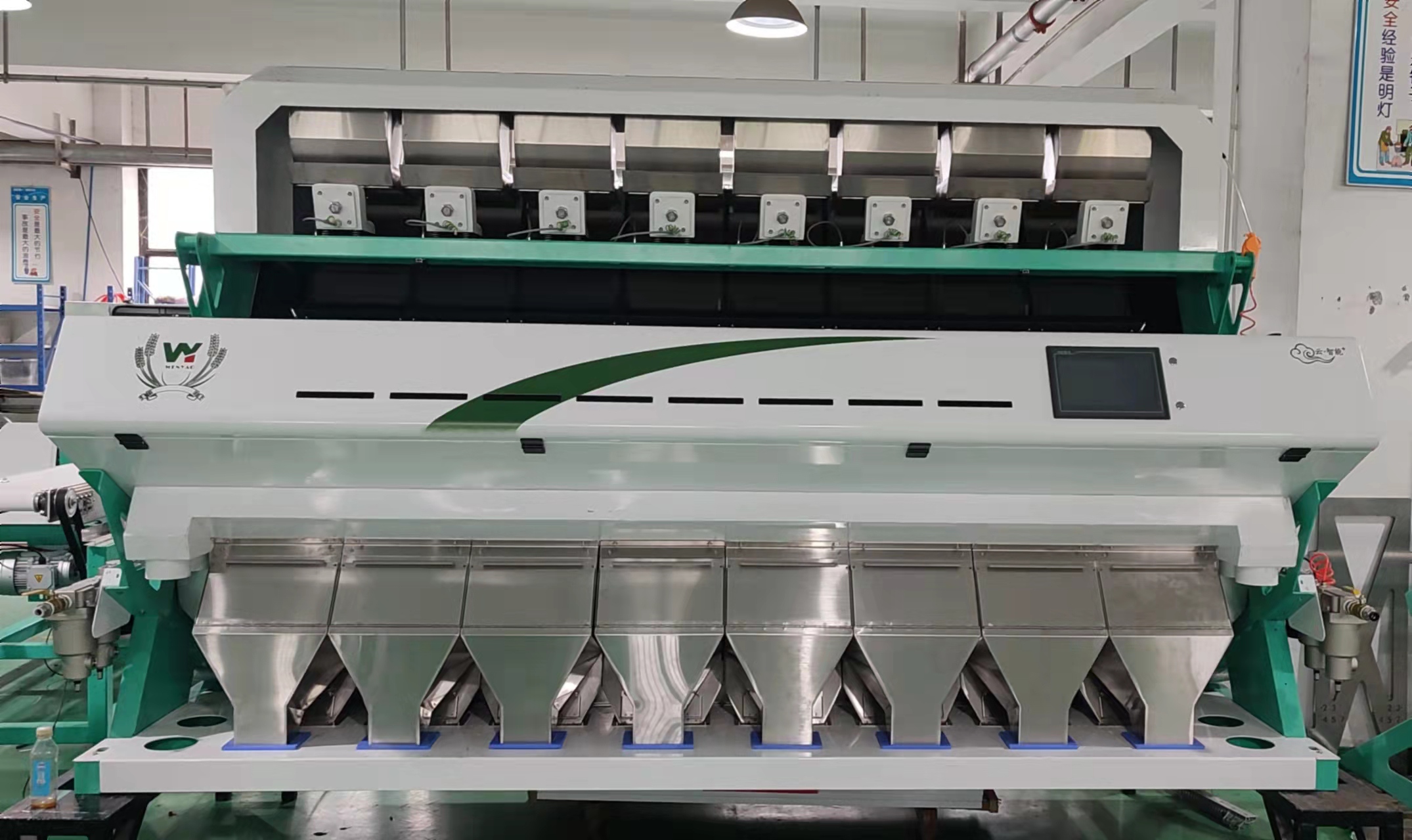

    RGB And CCD Color Sorter Grain Color Sorter Cereal Color Sorter

    Ask Lasest Price
    Brand Name : WENYAO
    Model Number : WYCS8-512
    Certification : CE & ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200PCS Per Month
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    RGB And CCD Color Sorter Grain Color Sorter Cereal Color Sorter

    RGB And CCD Color Sorter Grain Color Sorter Cereal Color Sorter


    What is a CCD in a camera?
    Stands for "Charged Coupled Device." CCDs are sensors used in digital cameras and video cameras to record still and moving images. The CCD captures light and converts it to digital data that is recorded by the camera. For this reason, a CCD is often considered the digital version of film.


    Color Sorter Machine Working Flow

    1. Raw Material are put into the machine from its feeding hopper on the top.

    2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .

    3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.

    4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.


    Technical Parameters:

    MODELWYCS8-512
    Chutes/Channels8/512
    Throughput(t/h)3.5-12t/h
    Sorting Aaccuracy≥99.99%
    Power5kw
    Power Voltage180-240V/50Hz
    Air Source Pressure0.6-0.8Mpa
    Air Consumption<4M3/Min
    Weight1500kg
    Diamension(L*W*H)3025*1540*1852mm

    Throughtput:Different impurity with different throughput.


    Examples of color sorting:



    Successful cases



    Package and delivery


    FAQ


    1. How to use the machine?


    We will supply the Installation instructions or video and our engineers will train your operators.


    2. How long about the guarantee period?


    Two years. And we supply lifelong software upgrade services for our customers.


    3. Can you supply the air compressor, air tank and air filters?


    Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.


    4. Is oversea service available?


    Yes, our engineers could go abroad when required.
