Color Sorter New Design CCD 5 Chutes Peeled Peanut Almond Walnut
Raisin Color Sorting Machine
Working Principle:
Input product is loaded into the in-feed hopper , it moves along
the vibrating plate , until it flows on to a sloping chute, where
it is individually checked at 360° and sorted by RGB Full color
cameras .
Depending on the signals received by the optical device, the
sorter's software controls the pneumatic device, which physically
separates the unwanted products out of the conforming ones, which
naturally reach their discharging hopper.
2. Technical Parameters:
| MODEL | WYCS5-320 |
| Chutes/Channels | 5 / 320 |
| Throughput(kg/h)2-6t | 2-6t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.9kw |
| Power Voltage | 240V/50Hz or Customized |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.8M3/Min |
| Weight | 900kg |
| Diamension(L*W*H) | 2244*1540*1852mm |
3. What is color sorter?
Color Sorters are machines that are used on the production lines in bulk food
processing and other industries. They separate items by their
colours, detecting the colours of things that pass before them.
The cashew sorting technology is according to the color differences
of cashew materials, using a high-resolution CCD optical sensor to
separate black,red,broken,small and moldy etc.Sorting machines improve product quality and add social benefits.
1. With Over 14 years experiences.focus on sorter machine.
2. After-sales service guarantee: We have a professional
after-sales service team, one-on-one customer service to help customers install and w.
3. We have service station, cooperate reseller in more than 100 countries.
4. Quality assurance of raw materials: The raw materials we purchase are certified
qualified products.
5. Quality process assurance: We pass ISO quality management system, each process of production
are under strictly standard.
6. System test:Our technical engineers check the product performance, to ensure
that the factory products in full compliance with customer
requirements
4. Examples of Color Sorting Examples:
How can a color sorter benefit your business?
This product can be used in agricultural, grain, oil, chemical,
pharmaceutical and other industries, especially suitable for
rice,
tea, sesame,
beans,
seeds, raisins,
plastic, ore,
peanut, pepper, and other color sorting field.
Compared with manual sorting, a color sorter machine is
labor-saving, time-saving, high efficiency with much lower
processing cost, it can dramatically improve material accuracy to
bring economic and social benefits for customers all over the
world.
6. Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need

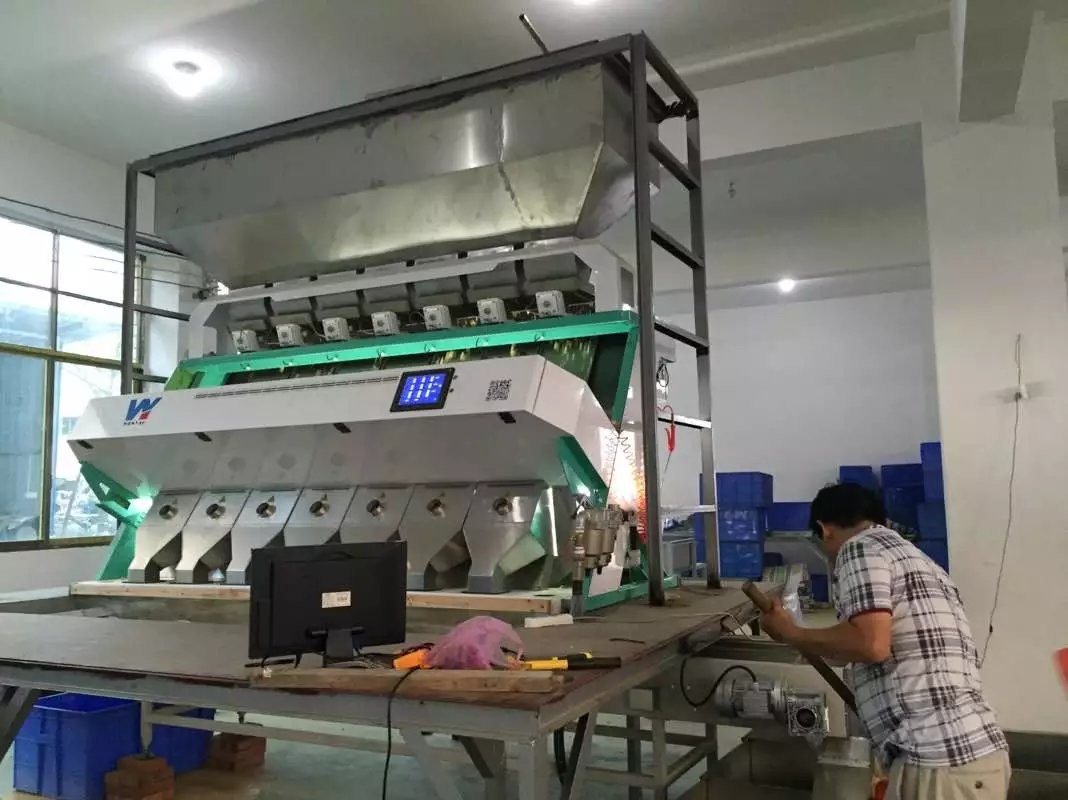

5. Real Photo of WYCS5-320 in customer site:
6.Our After-Sale Service
We will test your products at your plant, training your staff, set
every file for customer to serve all round service, so as to ensure
your machine working under the best situations.
From the date of use machine, we can provide one year free
maintenance ( not the reason of vandalism and something unexpected,
excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can
train technical staff for customers.We provide lifelong software
upgrade services for our customers for free.
7.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
