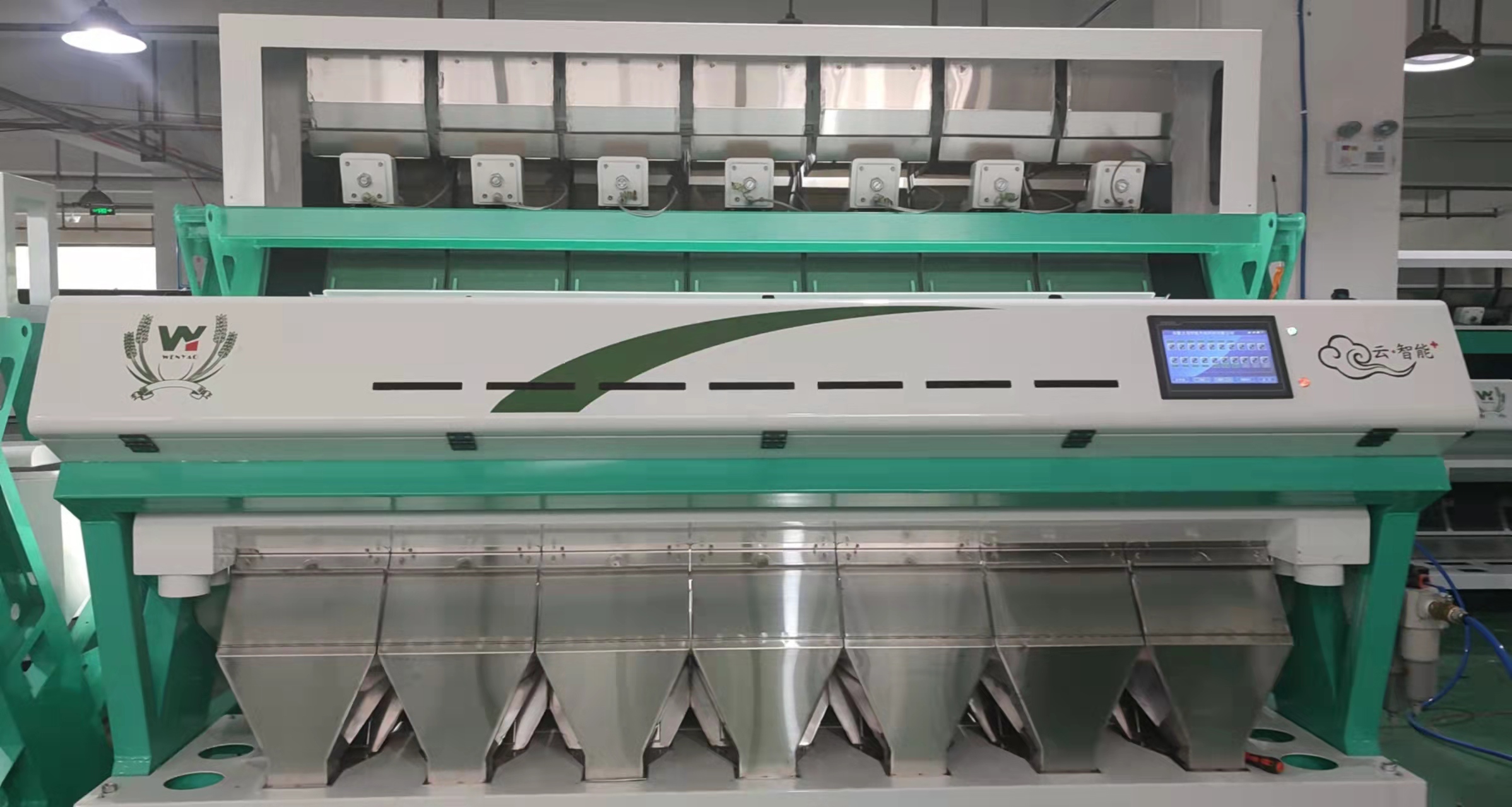

    Hot Sale WENYAO Color Sorter Cumin Pepper Color Sorter Machine Sorting For Spice

    Ask Lasest Price
    Brand Name : WENYAO
    Model Number : WYCS7-448
    Certification : CE or ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200Pieces Per Month
    Delivery Time : 10-15work days
    MOQ : >=1 piece
    • Product Details
    • Company Profile

    Hot Sale WENYAO Color Sorter Cumin Pepper Color Sorter Machine Sorting For Spice

    Hot Sale WENYAO Color Sorter Cumin Pepper Color Sorter Machine Sorting For Spice


    Color Sorters are machines used on the production lines in bulk food processing and other industries.

    They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.
    In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4--0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.


    Technical Parameters:

    MODELWYCS7-448
    Chutes/Channels7 / 448
    Throughput(t/h)3-10t/h
    Sorting Aaccuracy≥99.999%
    Power3.9kw
    Power Voltage180-240V/50-60Hz
    Air Source Pressure0.6-0.8Mpa
    Air Consumption<2.8M3/Min
    Weight1350kg
    Diamension(L*W*H)2905*1540*1852mm

    Machine Features:


    Increased Productivity


    1.Dedicated digital sorting engine to deliver high speed

    2.Wide flat chute to increase throughput

    1.

    Maximized Sorting Yield

    1. Sorting high speed and precise ejection to minimize good product in reject
    2. Resort capability reclaims good product from reject


    1.

    High Sorting Accuracy

    1. High speed, high resolution, full color RGB CCD camera (5400 pixels) to detect tiny defects
    2. Advanced imaging technology to sort defects with minimum contrast
    3. Enclosed feeding system to provide better feeding and chute protection
    4. Infrared sorting (optional) to effectively sort foreign materials


    1.

    User Friendly Operation

    1. 1. High resolution touch screen with user-friendly graphics
    2. 2. Real time monitor of machine status
    3 3. Easy software upgrade with USB

    as


    Examples of Color Sorting



    Our Service:


    Before Sale
    We will provide detailed solutions for your special requirement and help you know more about our color sorter.

    After Sale Service
    We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.

    From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.

    Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.


    Packing and Delivery

    Packaging Details:
    Our products use professional wooden cases with PE plastic bag.

    Package size will depend on each model size.



    Delivery Detail:
    Within 15 - 20 days after received deposit.
