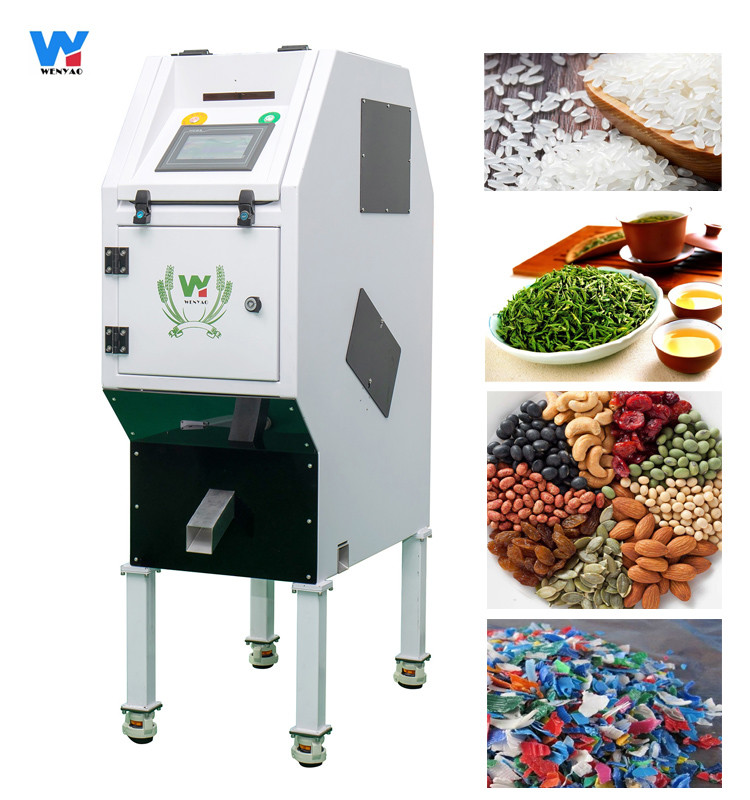

Wenyao color sorter Features:
1. Most advanced RGB cameras with 5400 pixels linear industry CCD
sensor .
2. America FPGA processing chip.
3. Japan Toshiba CCD sensor.
4. Metal ejectors/valves with more than one billion lifetime
5. Lens:Japan Nikon Lens .
6. Filter: Japan CKD filter
7. Power source:Taiwan Meanwell
8. All LED light source,more longer lifetime and save power
9. Flexem Humanized touch screen
10. WIFI remote control system ,help end user to debug and monitor
machine situation in chinese factory during covid-19 period,Supply
non-contactness after service
Working Principle
1. Technical Parameters:
2. Wenyao Color Sorting Machine Factory Introduction:
Anhui WenYao Intelligent Photoelectric Technology Co., Ltd. is
located in "Science City" reputation, known
as the Great Lakes city - Anhui Hefei China. The company is located
in the high-end positioning Yaohai
City Technology Industrial Park Is a comprehensive high-tech
enterprise integrating scientific research,
development, production, sales and service of CCD intelligent color
sorter and near infrared color sorter.
Mainly for the industry to provide high-end sorting, sorting and
other equipment, has for many enterprises
and individuals to provide professional, quality products and
services.
| Model | Output(t/h) | Sorting Accuracy(%) | Rejection Rate | Weight(kg) | Whole Power(KW) | Dimensions
(L*W*H)mm | Air Pressure(Mpa) |
| WYCS1-32 | 0.15-0.45 | ≥99.9 | ≥12:1 | 180 | 0.5 | 895*460*1157 | 0.6-0.8 |
| WYCS1-64 | 0.3-0.9 | ≥99.9 | ≥12:1 | 280 | 0.75 | 780*1527*1543 | 0.6-0.8 |
| WYCS2-128 | 0.6-2.5 | ≥99.9 | ≥12:1 | 450 | 1.1 | 1250*1535*1832 | 0.6-0.8 |
| WYCS3-192 | 1.0-4.0 | ≥99.9 | ≥12:1 | 600 | 1.6 | 1620*1535*1832 | 0.6-0.8 |
| WYCS4-256 | 1.4-5.0 | ≥99.9 | ≥12:1 | 750 | 2.3 | 1855*1540*1852 | 0.6-0.8 |
| WYCS5-320 | 2.0-6.0 | ≥99.9 | ≥12:1 | 900 | 2.9 | 2244*1540*1852 | 0.6-0.8 |
| WYCS6-384 | 2.5-8.0 | ≥99.9 | ≥12:1 | 1100 | 3.1 | 2595*1540*1852 | 0.6-0.8 |
| WYCS7-448 | 3.0-10.0 | ≥99.9 | ≥12:1 | 1350 | 3.9 | 2905*1540*1852 | 0.6-0.8 |
| WYCS8-512 | 3.5-12.0 | ≥99.9 | ≥12:1 | 1500 | 5 | 3025*1540*1852 | 0.6-0.8 |
| WYCS10-640 | 4.5-16.0 | ≥99.9 | ≥12:1 | 1800 | 6.5 | 3750*1540*1852 | 0.6-0.8 |
| WYCS12-768 | 5.5-20.0 | ≥99.9 | ≥12:1 | 2100 | 7 | 4430*1540*1852 | 0.6-0.8 |
3. Machine Features:
4. Examples of Color Sorting Examples
Wenyao multifunction color sorter application
Agriculture products color sorter
Used
for:Rice,Wheat,Corn,Soybean,Peanut,Nut,Grain,Cereal,Seeds,Bean,Sunflower
seeds,Waltnut,Almond,Quinoa,Salt,Medlar,Pistachio,Kidney bean,Red
bean,Black bean,Green bean,Coffee bean,Fava bean,Mung
bean,Millet,Sorghum,Peeled garlic,Dehydrated garlic,Lotus
seed,Sesame,Pinenut kernel,Watermelon seeds,Cotton seeds,Melon
seeds,Buckwheat,Oats,Barley,Cardamon,Pea,Lentil,Cashew
nut,Raisin,Jujube,Evaporate
vegetables,Sugar,Onion,Potato,Blueberry,Tomato,Mango,Chickpea,Olives,Chili,others.
Industrial product color sorter
Used for:Waste Plastics,Plastic pellet,Plastic pieces,Plastic
granule,Plastic bottle cap flake,PET bottle scrap,ABS plastic
flake,PP plastic scrap,Recycled plastic,Quartz stone,Quartz
sand,Potassium feldspar,Barite,Calcite,Limestone,Pearl,Marble and
others.
River&Sea food color sorter
Used for: Dried shrimp, fish, small fish clove and so on.
Customized color sorter
Can be customized according to customer specific color selection
program.
5. Our Service:
A:For software:We have installed WIFI remote control system on
machine,Once machine arrived in your local we will connect with
machine touch screen provide technical assistance from Chinese
factory.
B:For hardware:We will supply you the spare parts ship together
with machine,In case you face hardware problems,we will guide you
how to repair by live videos.
6. Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 3-5days after received deposit.
