    7 Chutes Multifunction Color Sorter For Cardamom Grading

    Ask Lasest Price
    Brand Name : WENYAO
    Model Number : WYCS7-448
    Certification : ISO9001 and CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 255Pieces Per Month
    Delivery Time : 15-25work days
    MOQ : 1 pcs
    • Product Details
    • Company Profile

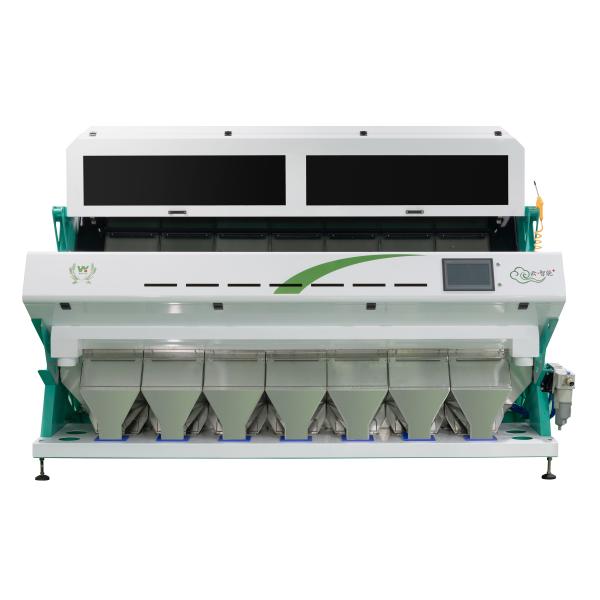

    7 Chutes Multifunction Color Sorter For Cardamom Grading

    Multifunction Color Sorter For Cardamom Grading Cardamom Color Sorter Machine

    1. Cardamom Color Sorter Machine Working Principle as following:

    Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber



    2. Technical Parameters:

    MODELWYCS7-448
    Chutes/Channels7 / 448
    Throughput(T/h)5T/h-7T/h
    Sorting Aaccuracy≥99.99%
    Power3.9kw
    Power Voltage180-240V/50-60Hz
    Air Source Pressure0.6-0.8Mpa
    Air Consumption<2.8M3/Min
    Weight1350kg
    Diamension(L*W*H)2905*1540*1852mm


    How to get the correct size and suitable price of wenyao color sorter machine?


    Step 1. Which kinds of the material do you want to sort ?


    Step 2. How much input capacity for the raw materials per hour?


    Step 3. In order to know the impurity rate of the raw materials which are needed to be sorted, please send us 3 pictures as following:
    1. Raw material picture(feeding in the machine materials)
    2. Accepted material picture(you want to save the good materials)
    3. Rejected material picture(you want to sort out the bad materials)


    3. Machine Features:

    Features:
    ►Automatic computing and intelligent identification with high speed camera.
    ►5400Pixel CCD image acquisition system with high speed chip.
    ►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
    ►Self design high frequency ejectors,It means high speed and accurate sorting performance.
    ►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
    ►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
    ►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.


    4. Examples of Color Sorting Examples



    5. Our Service:


    A: For software:We have installed WIFI remote control system on machine,Once machine arrived in your local we will connect with machine touch screen provide technical assistance from Chinese factory.


    B: For hardware:We will supply you the spare parts ship together with machine,In case you face hardware problems,we will guide you how to repair by live videos.


    6. Packing and Delivery:

    Packaging Details:
    Our products use professional wooden cases with PE plastic bag.
    Package size will depend on each model size.



    Delivery Detail:
    Within 15 - 20 days after received deposit.


    7.FAQ

    1. How to install and use the machine?
    We will supply the Installation instructions or videos and our engineers will train the operators.

    2. How long about the guarantee period?

    2 years. We supply lifelong software upgrade services for our customers.
    3. Can you supply air compressor, air tank and air filters?
    Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.

    4. How about after sales service?

    Yes, By videos or by remote control or local service or engineers could go abroad when required.
