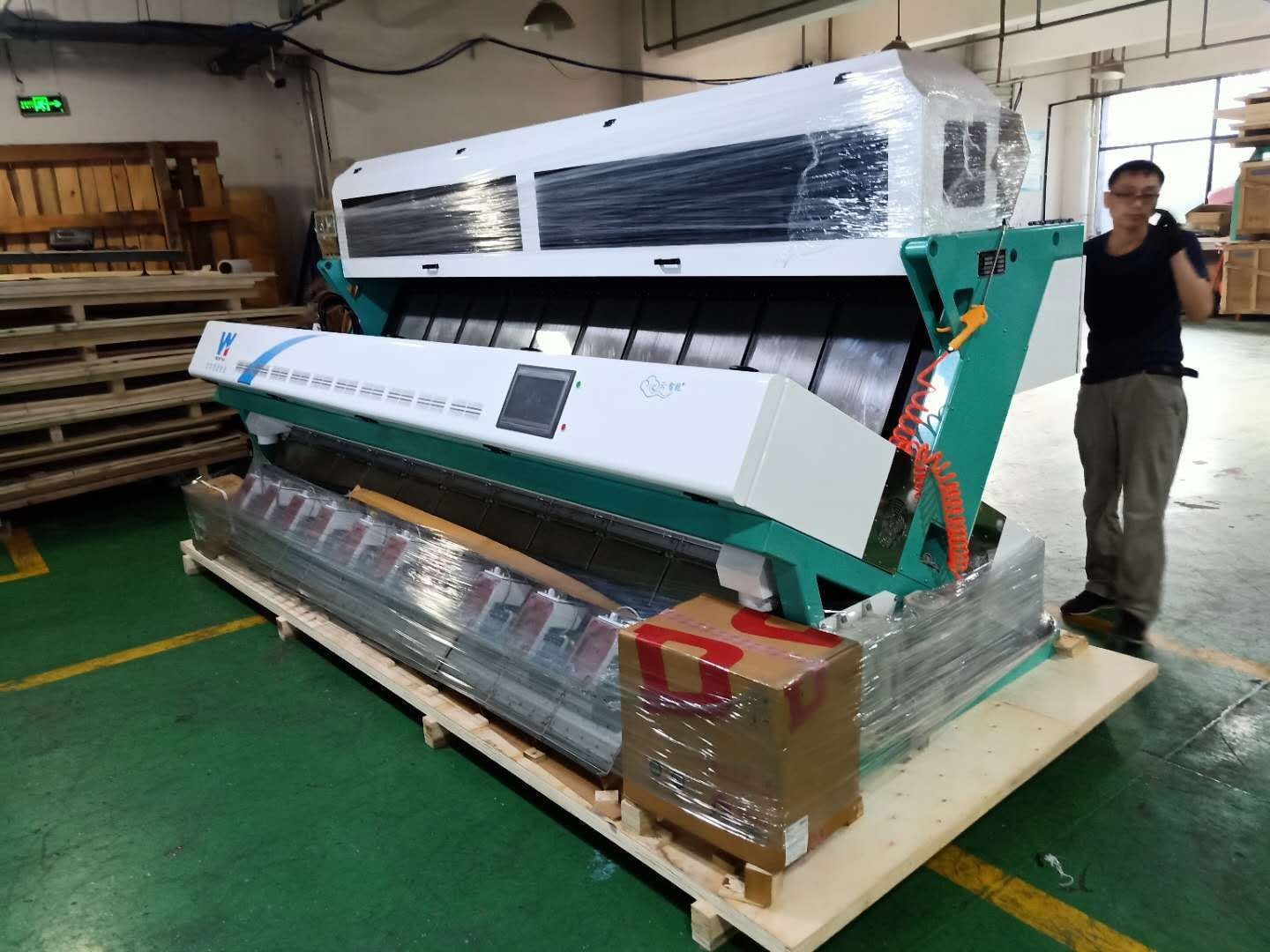

Colour Peanut Sorter Grain Peanut CCD 256 Channels Grain Color
Sorter Nuts Color Sorter
When color sorter is working, feed hopper in the materials under
the action of vibrator is uniform distribution in each chute. The
CCD signal while the materials are dropping is in testing. If it is
found that there are unqualified materials or impurities in the
materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYCS4-256 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.3kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.4M3/Min |
| Weight | 750kg |
| Diamension(L*W*H) | 1855*1540*1852mm
|
Features:
*Latest UHD imaging and analysis technology,high-speed
processing,accurate identification
*High level AI self-learning function,one-key automation,user
friendly interface,easy operation
*Multi-function,multi-purpose,widely used for rice
,cereal,plastic,chinese medicine
*High and specification ensures high stability,with high sorting
accuracy,small carry over and low energy
*Small and portable,saving space and delivery cost,small machine
but super function
*Imported ejectors,much smaller air consumption,and much better
carry over,esp.good for small materials like quinoa,chia,sesame....
*Option:Remote control by smart terminals like cellphone ,can
realize the off-site controls of the accuracy,production capacity
and halt of the machines
*Simple Effective-installation&Start-up&Commissioning
services;remote teaching and guidance via live video online through
internet to worldwide
Working Principles
The main components of the color sorter are feed hopper, vibrating
feeder, chute, light source, background plate, CCD lens, outlet
hopper, nozzle, air compressor, air tank, and filter.
Feeding system
It consists of feeding hopper, vibrating feeder, and chute. Raw
material enters into vibrating feeder from the feeding hopper, then
automatically be arranged into a series of continuous current line
by vibration and a guiding mechanism, and fall to a detection zone
at a constant speed after being accelerated by the chute. to ensure
that the material is clearly present in the sorting cabinet. The
feeding system also controls the capacity of the color sorting
machine in addition to the function of providing raw material.T
through the adjustment of the vibration amount of the feed hopper
flow control plate and the vibration hopper, the control of the
output of the color sorter per unit time can be realized.
Optoelectronic system
The Optoelectronic system is the core part of the color sorting
machine, which is mainly composed of an LED light source,
background plate, CCD lens, and related auxiliary devices. The
light source provides stable uniform illumination of the material
being tested and the background plate. The CCD lens converts the
reflected light of the material to be measured into an electrical
signal in the detection area. The background plate provides a
reference signal for the electronic control system.
Sorting system
The sorting system consists of accessories such as sorting cabinet,
nozzles, air supply. The nozzle has been experimentally proved that
the nozzle spacing and the number of nozzles are one of the key
factors affecting the accuracy of the color sorter.
Cleaning system
The cleaning system consists of cylinders, glass cleaning brushes,
and other components. Because some items come with the dust and
other impurities that may adhere to the glass during the color
sorting process. Once the dust and impurities are attached to the
window glass, the optoelectronic system may cause chain-chain
problems such as false detection, which will affect the color
sorting accuracy and carryover ratio.
Operating System
The large-screen wide-angle touch screen is used to preset multiple
color sorting modes for customers. And establish a friendly
man-machine interface, according to the specific conditions of
materials convenient and quick to achieve adjustment.
Examples of color sorting:
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our
engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our
customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes
color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5. How about the sample machines for testing?
A: Sample sending for testing is welcomed.Or you send these three
photos,the raw material,good material (which is you want) ,bad
material (which is you want to discard).We send our video to you.
6. How about the guarantee period?
A: Two years warranty
