2021 Hot Selling 5 Chutes Candlenut CCD Nuts Color Sorter In Nuts
Processing Line
1.WENYAO Nuts Color Sorter Machine Working Principle
Raw materials are put into the machine from its material hopper on
the top, vibrated by vibratiory feeder and sliding along material
chute into the zone of observation in sorting chamber through
sensors and background plate. Under the effect of lamps source, CCD
sensor receives compound light from materials being sorted.
According to the light intensity and color changes, make the system
produce output signal and drive solenoid valve(ejector) to work,
ejecting the discolor grain to reject chamber and good materials
continue to fall into the finished accept chamber.
2.Technical Parameters:
| MODEL | WYCS5-320 |
| Chutes/Channels | 5 / 320 |
| Throughput(kg/h) | 3000kg/h-4000kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.9kw |
| Power Voltage | 240V/50Hz or Customized |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.8M3/Min |
| Weight | 900kg-910kg |
| Diamension(L*W*H) | 2244*1540*1852mm |
3.CCD Color Sorter Machine Core Parts:
*Latest UHD imaging and analysis technology,high-speed
processing,accurate identification.
*High level AI self-learning function,one-key automation,user
friendly interface,easy operation.
*Multi-function,multi-purpose,widely used for rice,grain
,beans,plastic,chinese herbals etc.
*Combined with color sorting,shape sorting and size sorting,to sort
difficult impurities like micro color difference,tiny bad spot etc.
*High and specification ensures high stability with high sorting
accuracy small carry over and low energy.
*Clound computing,massive dated analysis,multi-camera
identification,high accuracy.
*Simple effective-installation&start-up&commissioning
services:remote teaching and guidance via live video online through
interest to worldwide.
4.Examples of Color Sorting Examples
5.FAQ
1. How to use the machine?
We will supply the Installation instructions or video and our
engineers will train your operators.
2. How long about the guarantee period?
One year. And we supply lifelong software upgrade services for our
customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes
color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would
like to send 1 Engineer to guide for installation, then customer
should to pay the cost, including transaction of Engineer's visa,
transportation(air) for go abroad. and accommodation , local
transportation and security when the Engineer arrived.

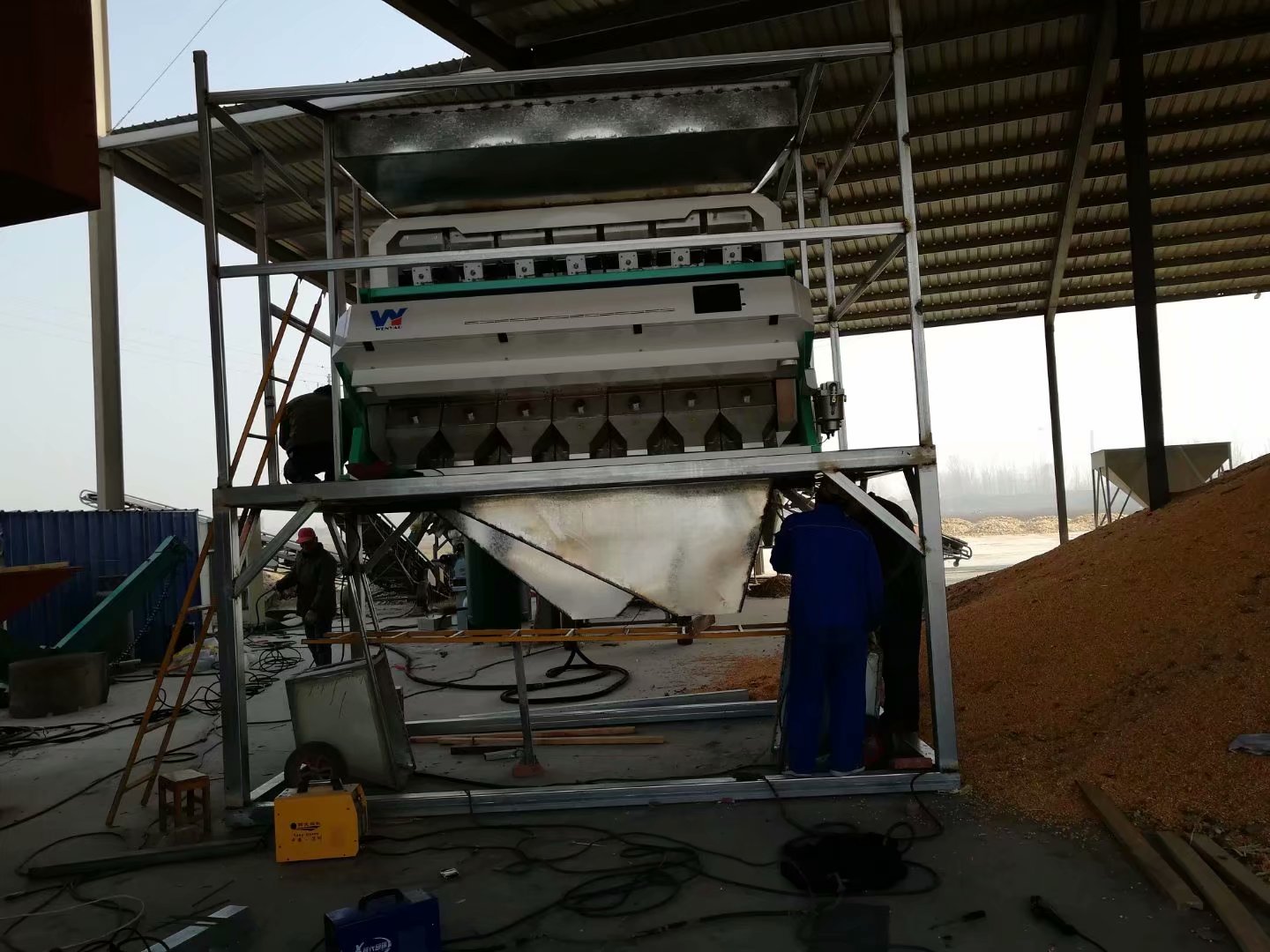

6.Real Photo of WYCS7-448 in customer site
7.Our Service:
Pre-sales
We will provide detailed solutions for your special requirement and
help you know more about our color sorter.
After-Sale Service
We will test your products at your plant, training your staff, set
every file for customer to serve all round service, so as to ensure
your machine working under the best situations.
From the date of use machine, we can provide one year free
maintenance ( not the reason of vandalism and something unexpected,
excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can
train technical staff for customers.We provide lifelong software
upgrade services for our customers for free.

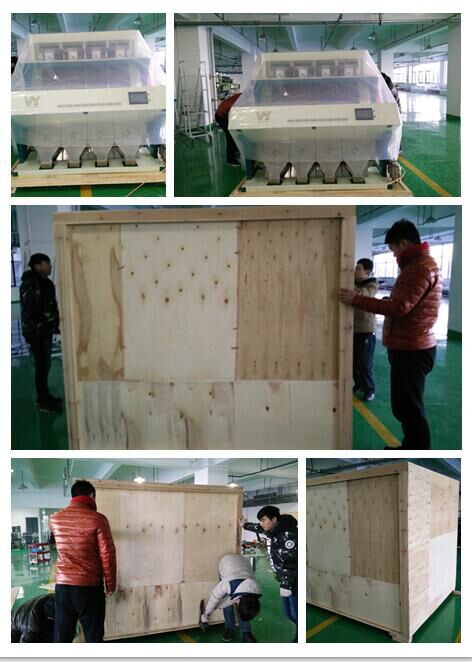

8.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
