5400 Pixel CCD Camera Brown Rice Color Sorting Machine With 7 Chutes And Power 3.9Kw

1.CCD WYCS7-448 Rice Color Sorter Machine Working Principle and flow

Raw materials are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate. Under the effect of light source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work, ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber

What is a CCD in a camera?
Stands for "Charged Coupled Device." CCDs are sensors used in digital cameras and video cameras to record still and moving images. The CCD captures light and converts it to digital data that is recorded by the camera. For this reason, a CCD is often considered the digital version of film.

2.Technical Parameters:

How to get the correct size and price for wenyao color sorter machine?
Step 1.What kinds of the material are you planning to sort ?

Step 2.How much capacity(output) to sort for the raw materials per hour?

Step 3.In order to know the impurity rate of the raw materials which are needed to be sorted, please send us 3 pictures as following:

1. Raw material picture(feeding in the machine materials)
2. Accepted material picture(you want to save the good materials)
3. Rejected material picture(you want to sort out the bad materials)

3.Machine Features:

CCD Camera
Japanese TOSHIBA 5340 line
ar CCD, core guarantee of high precision and quick sorting , the smallest to 0.04mm could be locked.

LED system
World leading stable long lifetime LED light, customized LED solution accepted according to specific material.

Control Unit
Advanced Image Processing System, synchronized for multiple operations and sorting mode. Adjust sorting operation to guarantee the sorting accuracy based on complex colors and shapes.

Chute System
Advanced chute design with hundreds of experiments, ensuring smooth flowing, uniform falling speed and less material consumption, optimized machine structure for disassembly and maintenance.

Ejector Valve
Italian new type of high frequency electromagnetic valve allows for accurate control of air flow power and direction with long lifetime.

4.Examples of Color Sorting Examples

5.Our After Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.

From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.

Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.

6.Packing and Delivery:

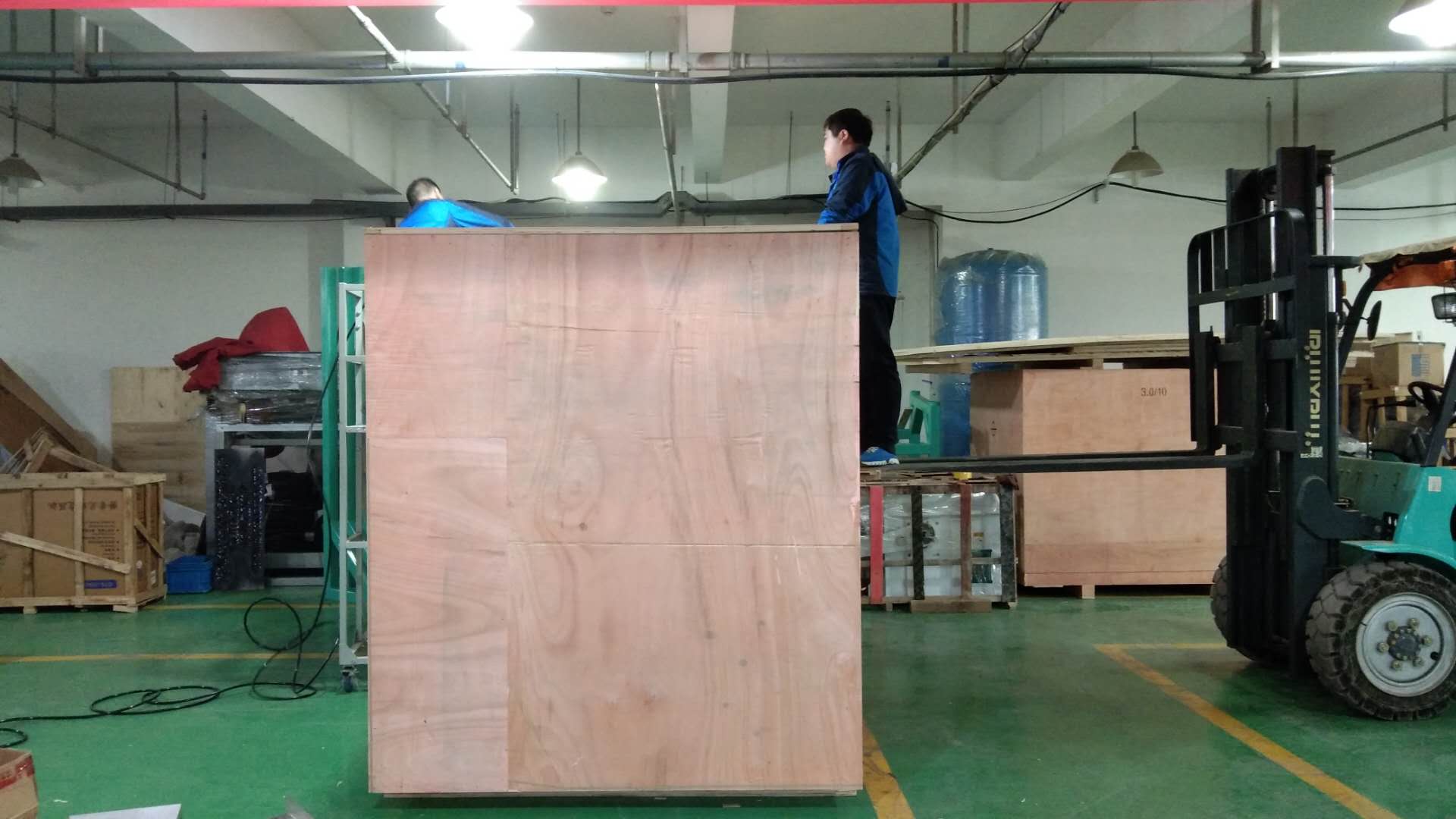

Our products use professional wooden cases with PE plastic bag.

Package size will depend on each model size.

Delivery Detail:
Within 15 - 20 days after received deposit.
