Mini 1 Chute Bean Sorting Machine Coffee Bean Color Sorter
Separator Machine With Best Price
What is color sorter?
Color sorting machine is an equipment that automatically sorts out
different color particles in granular materials by photoelectric
technology according to the difference of material color.
The selected material enters the machine from the hopper at the
top, passes through the vibration of the vibrator device, slides
down the channel, accelerates its descent into the observation area
of the sorting room, and passes between the sensor and the
background plate. Under the action of the light source, according
to the intensity and color change of the light, the system
generates output signals to drive the solenoid valve to blow out
the different color particles into the waste material cavity of the
receiving hopper, and the good selected material continue to fall
into the finished product cavity of the receiving hopper, so as to
achieve the purpose of selection.
Significance of color sorting machine:Compared with manual
selection, labor-saving, time-saving, high efficiency, low
processing cost.Improve the quality and economic and social
benefits of selected products.
Diagrammatize Working Principle:
Technical Parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(t/h) | 500-800kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.3M3/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |
Features:
1. Adopting 5400 pixels high-accuracy linear CCD camera,
professional images acquisition and processing system can process
images' parameters at high speed.
2. Bus structure ensures high consistency of signal, strong
anti-interference capability, better stability and more simplified
structure.
3. Minimum discolor area of 0.08 mm2 can be accurately identified, and the checking area is adjustable
according to sorting requirement.
4. Both flat type and channels type U-shaped chutes are available,
hence the color sorter can sort many other grains and granules.
5. Embeded operation system, user-friendly interface, convenient
operation.
6.Focue on systematic and original design.
7.Multi-dimensional intelligent color sorting,make color sorting
more frofessional and intelligent.
Product Application:
Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut,
Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio,
Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and frut:
Such as: Dired Garlic ,Onion, Olive,Coffe Cherry,Jujube ,Dried fish
and shrimp
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic
granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic
flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite,
Calcite, Limestone, Pearl, Marble and others.Detailed images:

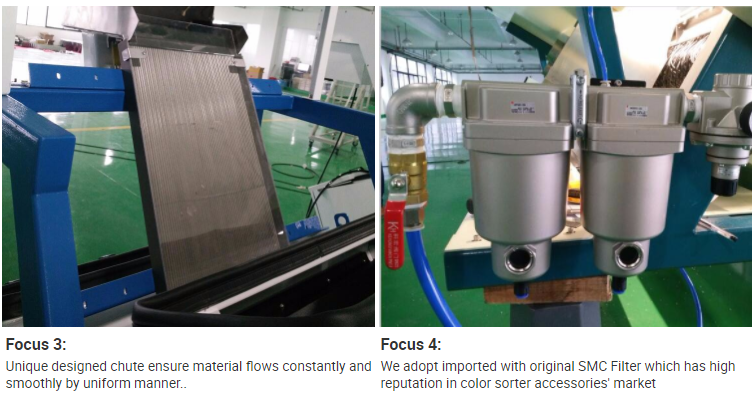

CCD Mini Grain Color Sorter Have Following Advanced Features:

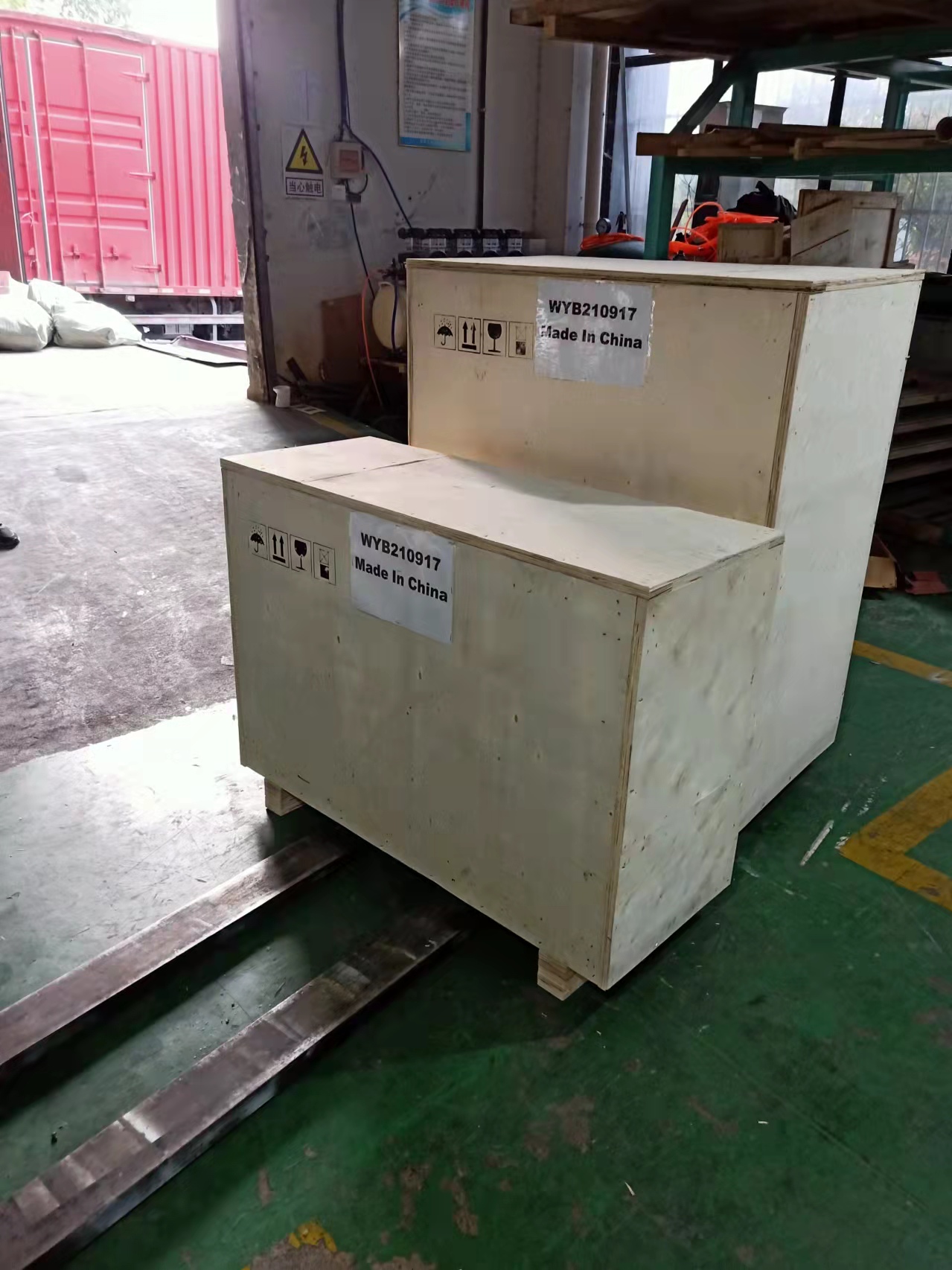

Packing delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 3 working days after received deposit
FAQ:
1.Q:How long about the guarantee period?
Two years. And we will supply lifelong software upgrade services
for our customers.
2.Q:Will you accept L/C as payment?
L/C ,T/T is OK.
3.Q:How about engineers service oversea?
Our engineers could go abroad services when necessary.
4.How about the sample machines for testing?
Sample sending for testing is welcomed. Or you send these three
photos, the raw material, good material (which is you want), bad
material (which is you want to discard). We send our video to you.
5.Q:How to use the machine?
We will supply the Installation instructions or video and our
engineers will train your operators.
6.Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need.
7. Which machine will work together with our color sorter which you
can supply?
We can provide Air compressor, air tank, air filters, Cleaning
brushes, etc.
Examples of color sorting:
Customer site:
