Yellow Lentils Beans Color Sorter Taiwan Meanwell Power Source

Ask Lasest Price
Brand Name :	WENYAO
Model Number :	6-6SXZ-320 & WYCS5-320
Certification :	CE & ISO9001
Price :	Negotiable,and Welcome your Inquiry
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	210PCS Per Month
Delivery Time :	7-15 working days
MOQ :	1 Piece

Add to Cart

Product Details
Company Profile

Yellow Lentils Beans Color Sorter Taiwan Meanwell Power Source

Taiwan Meanwell Power Source Yellow Lentils Color Sorter Machine In Lentils Processing Line

1.WENYAO Lentils Color Sorter Machine Working Principle As Following Image

In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of(0.4- 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.

2.Technical Parameters:

MODEL	WYCS5-320
Chutes/Channels	5 / 320
Throughput(kg/h)	3000kg/h-4000kg/h
Sorting Aaccuracy	≥99.99%
Power	2.9kw
Power Voltage	240V/50Hz or Customized
Air Source Pressure	0.6-0.8Mpa
Air Consumption	<2.8M3/Min
Weight	900kg-910kg
Diamension(LWH)	224415401852mm

3.CCD Color Sorter Machine Features:

※High speed, resolution ratio CCD camera, high speed line scan.

※ High speed, resolution ratio super clear imaging,color reduction well, no distortion.

※ High luminance LED resource, low power consumption, long life, reliable.

※ High frequency solenoid valve , special for color sorting. high sorting accuracy.

4.Examples of Color Sorting Examples

5.FAQ

1. How many days for production?
In general, within 15-20 worker days after getting deposit payment.

2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas,more reliable quality,more timely service.The same quality, more favorable price.

3. Do you provide product installation,training and after-sales service?
Most products can be installed and trained through online video and text mode.If special products need to be installed on site,we will arrange technicians to install and debug on site.

4. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.

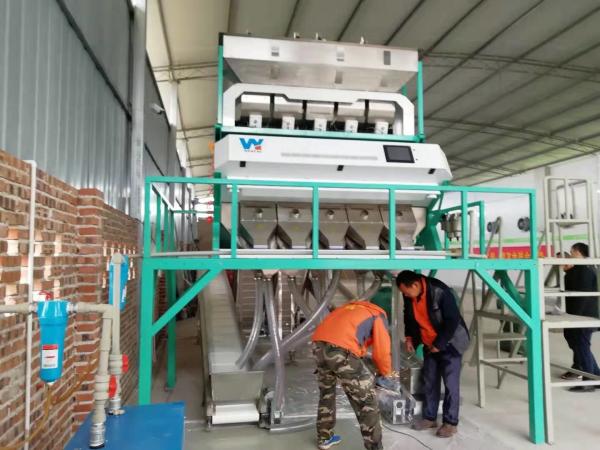

6.Real Photo of WYCS5-320 in customer site

7.Our Service:

Pre-sales
We will provide detailed solutions for your special requirement and help you know more about our color sorter.

After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.

From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.

Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.

8.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
