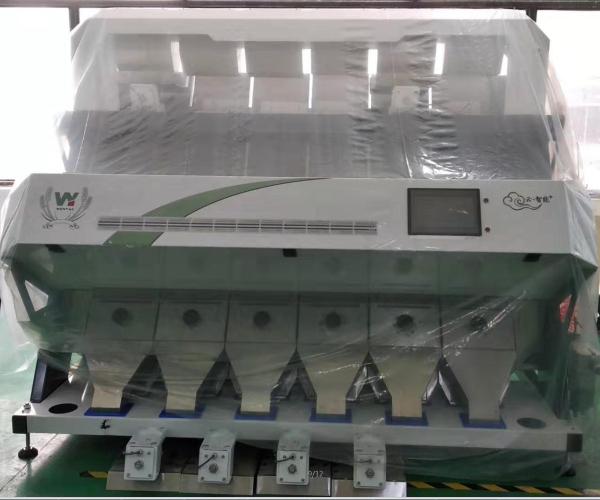

Intelligent Green Bean Colour Machine Beans Ccd Color Sorter
Machine
When color sorter is working, feed hopper in the materials under
the action of vibrator is uniform distribution in each chute. The
CCD signal while the materials are dropping is in testing. If it is
found that there are unqualified materials or impurities in the
materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYCS6-384 |
| Chutes/Channels | 6/384 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 3.1kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <3.2M3/Min |
| Weight | 1100kg |
| Diamension(L*W*H) | 2595*1540*1852mm
|
Applications as below :
Cereals:rice,millet,parboil rice,black rice,red rice,brown
rice,thai rice,glutinous rice.
Grains:peanut, corn,sesame,oat.
Beans:red beens,kidney beans,coffee bean,black beans,mung beans.
Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon
seed,macadamia nut.
Industries:plastic,electronic component,industrial salt,quartz sand
Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice
Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee
bean/lentil/chickpea
Tea: green tea/black tea/dark tea/white tea/ yellow tea
Cereals: corn/barley/wheat/oat/sesame/malt
Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew
nut/peanut/walnut/pistachio
Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage
Industrial Goods: quartz sand/recycled plastic/salt/mineral/monosodium
glutamate/white sugar/pill/pearl
Economic Crops:raisin/medlar/lily/red date/shrimp bran/tobacco/agaric
| Main Parts | Parameters/ brand | Parts Advantage and warranty |
| Channels | 64*6=384 | 1.High quality aluminum alloy 2.Anodic oxidation 3.Surface
polishing treatment 4.Material Slipping steadily
5.wear-resisting,wearproof 6.The service life is long. |
| Pixel of camera | 5400 | 1.High accuracy 5400 pixels 2.High perfomance with high
resolution.warranty:2 years |
| CCD sensor | Toshiba | High Sensitivity and resolution warranty:2 years |
| Light source | LED Lamps | 1.Luminous evenly 2.The service life is long 3.The light is not
weak for long time |
| Ejector | Metal | 1.High speed effect 1500times/second.2.Low air consumption 3.long
time service.warranty:18 months. |
| Filter | YSC/CKD | 1.High filtration accuracy 2.High filtering speed 3.durable and
long time service. |
| Screen | Touch screen | 1.Easy to operate with the man-machine interface 2.High sensitivity
of the screen 3.The service life is long.4.Software update service
program warranty:2 years |
| Hopper | 304 stainless steel | 1.Rust protection 2.Wear-resisting,wearproof |
| Package | Plywood case | 1.Stable structure no deformation 2.Easy to transport |
Color sorter work principle:
The working principle of CCD color sorter CCD digital camera to
material is adopted signal acquisition.Analyze the collected
signals, handling, comparison, to eliminate beyond the value of the
material.
Color selection process as shown:
Color sorter at work,Feed hopper in the material under the action
of vibrator is uniform distribution in each chute,The CCD signal of
the whereabouts of the material in testing,If it is found that
there are unqualified material or impurities in the material,The
startup ejector to blow the defective goods in the hopper.(Above
only for the working process of the diagram,The actual material
shall prevail.)
Color Sorter characteristic:
1.Automatic computing and intelligent identification with high
speed camera.
2.5400Pixel CCD image acquisition system with high speed chip.
3.Intelligent dust cleaning system,It means you can set cleaning
time and period according to your need.
4.Self design high frequency ejectors,It means high speed and
accurate sorting performance.
5.Low temperature LED light source system,Cooling system to make
the LED lamp more long life.
6.WIFI remote control system,It means color sorter connecting to the internet,You can use mobile
phone or computer to operate color sorter.
7.Easy to operate touch screen with english,spanish,german,russian
and so on more than 20 languages.
Examples of color sorting:

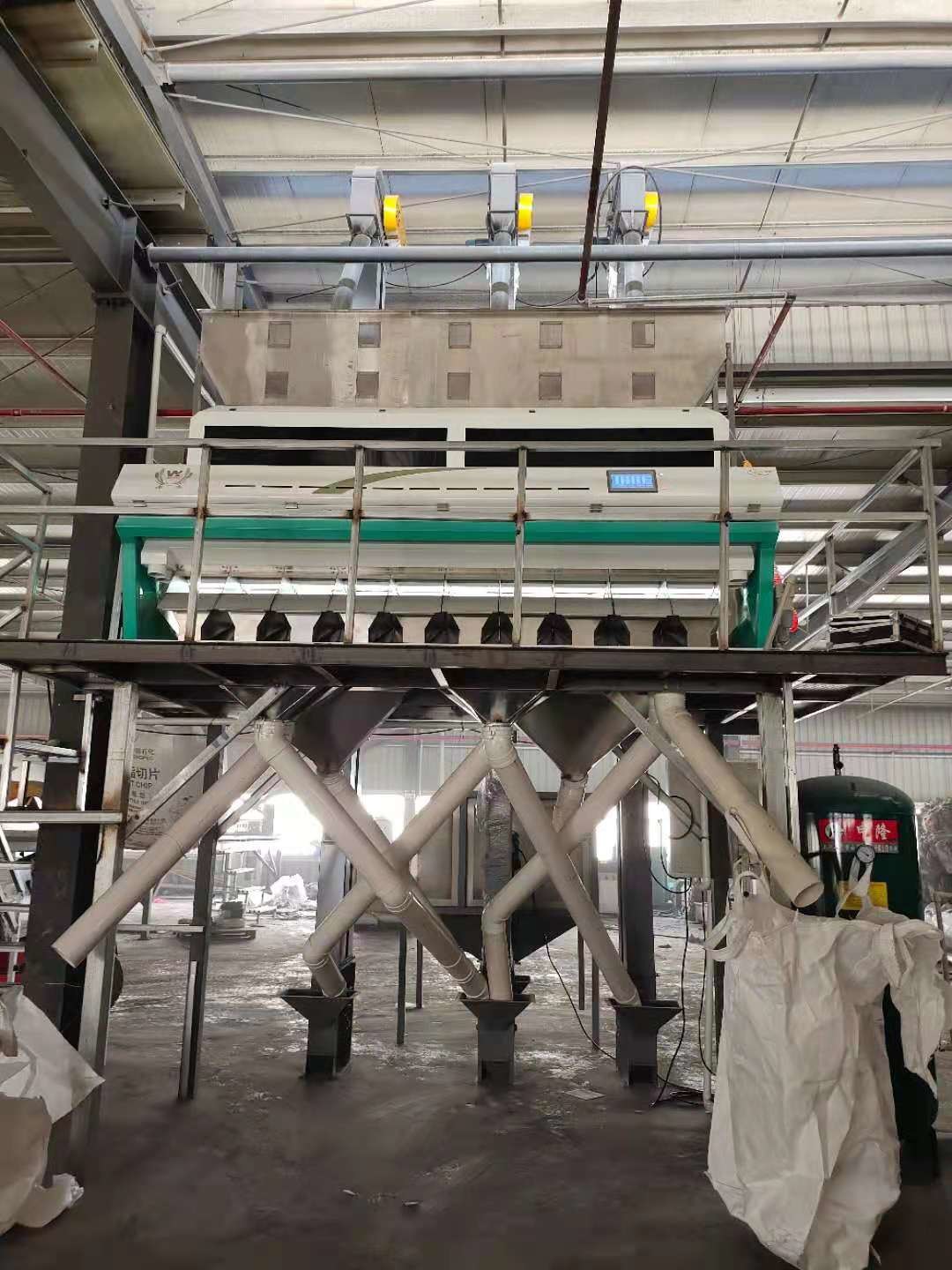

Customer's Site :
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our
engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our
customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes
color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
