Brand Name : | WENYAO |
Model Number : | WYCS4-256 |
Certification : | CE & ISO9001 |
Price : | Negotiable Price |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 100PCS Per Month |
Delivery Time : | 15 to 20 working days |
High Sorting Accuracy Cardamom Color Sorter Color Sorter Sorting Processing Machine
Technical Parameters:
MODEL | WYCS4-256 |
Chutes/Channels | 4/256 |
Throughput(t/h) | 2-3t/h |
Sorting Aaccuracy | ≥99.99% |
Power | 2.3kw |
Power Voltage | 180-240V/50Hz |
Air Source Pressure | 0.6-0.8Mpa |
Air Consumption | <2.4M3/Min |
Weight | 750kg |
Diamension(L*W*H) | 1855*1540*1852mm |
Technical Parameters of Color Sorter Machine
RGB full color tri-chromatic CCD image acquisition system. High camera resolution 5340 pixel identifying tiny defects up to 0.01mm2. High quality ejector with 5-10 billion ejections life low air consumption. Most unique intelligent LED with cold shadowless light source and super long life span, high lighting efficiency. Strong industry-grade digitization processor, image acquisition and processing in high speed, consistency of signal path and signal reliability is secured. International high-end full-color line scan technology, DSP+FPGA processing the international forefront of technology, combining a variety of colors and shapes model complex algorithms, to provide "color selection shape selected" function for different materials.
Color sorter :
Customer Service:
Color Sorters are machines used on the production lines in bulk
food processing and other industries. They sort materials by their
colors or shapes, If it is found that there are unqualified
materials or impurities in the materials, the ejector will blow out
the rejects in the hopper.
In color sorting stage, the grain pile comes into the hopper, from
there it goes into the vibrating feeder. The vibratory feeders
spread and leveled the grain to a single-layer flow.Two CCD cameras
are installed at the two sides of the control area. The
single-stream from e.g. Cereal is scanned by the cameras. The data
of the video cameras are used in the arithmetic unit and are
analyzed in real time. From the results of image analysis of the
signals, an air flow pulse is generated by opening the valves at
the moment on the fly by the detected particle. The compressed air
pulses with a pressure of (0.4 … 0.6 MPa), which is generated only
for the duration of a few milliseconds, blowing the grain into the
corresponding receiver module.
Advantage:
A: Free direct the installation and operation of the equipments and
train operators for customer.
B: Safe and reliable, efficient and energy saving, easy operating.
C: In time with English operating instruction program.
D: Timely, professionally
Application of Color Sorter Machine :
The automatic color sorting machine can directly replace the manual sorting work to achieve the purpose of improving production efficiency, improving accuracy and reducing labor, and reducing enterprise operating costs and labor costs. The automatic sorting machine can select product combinations with different weights, sizes, colors and other characteristics to select the working line, eliminating the financial and time of manual operation, and more accurate and precise. Widely used in food sorting, fruit sorting, food sorting, ore sorting, garbage sorting and other industrial product sorting industries.
Sorting Effect:

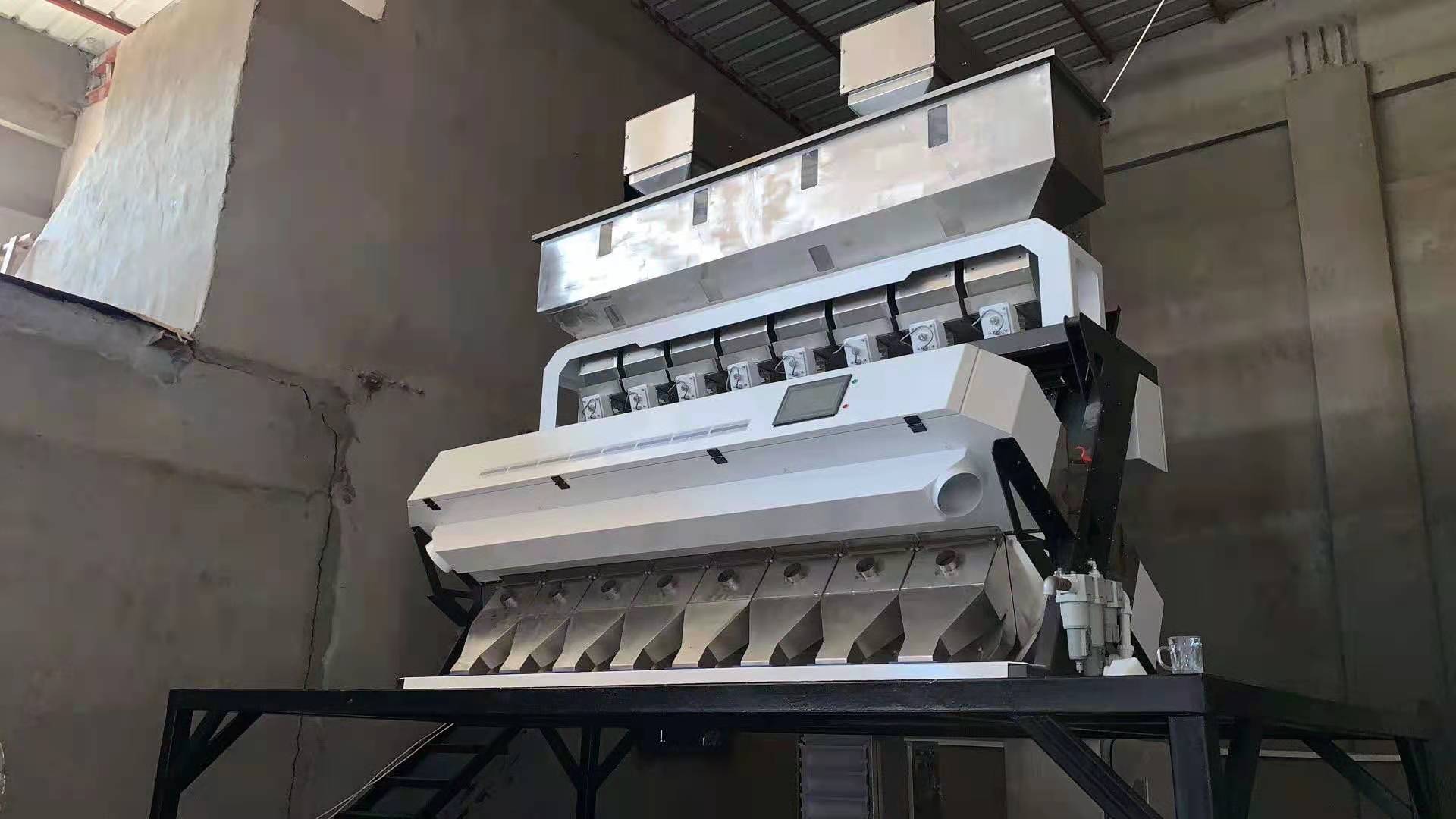

Customer's Site :
![]() |
