    6-6SXZ-320 Multifunction Salt Color Sorter Machine For Dark Salt Sorting With Air Compressor And Air Tank

    Ask Lasest Price
    Brand Name : WENYAO
    Model Number : 6-6SXZ-320/WYCS5-320
    Certification : CE&ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 225PCS Per Month
    Delivery Time : 7-15 working days
    MOQ : >=1 Pieces
    • Product Details
    • Company Profile

    6-6SXZ-320 Multifunction Salt Color Sorter Machine For Dark Salt Sorting With Air Compressor And Air Tank

    6-6SXZ-320 Multifunction Salt Color Sorter Machine For Dark Salt Sorting With Air Compressor And Air Tank


    1.WENYAO Salt Color Sorter Machine Working Principle and Working Flow

    The selected material enters the machine from the hopper at the top, passes through the vibration of the vibrator device, slides down the channel, accelerates its descent into the observation area of the sorting room, and passes between the sensor and the background plate. Under the action of the light source, according to the intensity and color change of the light, the system generates output signals to drive the solenoid valve to blow out the different color particles into the waste material cavity of the receiving hopper, and the good selected material continue to fall into the finished product cavity of the receiving hopper, so as to achieve the purpose of selection.


    2.Technical Parameters:

    MODELWYCS5-320
    Chutes/Channels5 / 320
    Throughput(kg/h)3000kg/h-4000kg/h
    Sorting Aaccuracy≥99.99%
    Power2.9kw
    Power Voltage240V/50Hz or Customized
    Air Source Pressure0.6-0.8Mpa
    Air Consumption<2.8M3/Min
    Weight900kg-910kg
    Diamension(L*W*H)2244*1540*1852mm


    3.CCD Color Sorter Machine Core Parts:


    1.Each group can be synchronized for the simultaneous separation of different models. This allows for a variety of color sorting at same time. This method both improves productivity and significantly increase the color accuracy.

    2.Advanced tailor-made slide and track construction

    The anti-oxygen chute device adopted special processing technology, make material flow more smooth, uniformly. It's also very strong and durable.

    3.Unique lighting structure system

    Advanced LED light with thermal dissipation, wide color gamut, excellent uniformity, long service life and low power consumption.

    4.High quality solenoid valve(ejector)

    The valve has longer lifespan, high frequency and low air consumption. For the different sizes and characteristics of material particle, sorters use the solenoid valve of different sizes.

    5.Full range of automatic detection function

    The color sorter has built in self-diagnostic capability verifying key components e.g.spray valve, pressure plate, camera, control panel, and background during normal operation .Identified faults can be easily rest by the user.

    7.Perfect after-sales service and warranty service

    We have a professional after-sales team and engineers. And we supply lifelong software upgrade services for our customers.


    4.Examples of Color Sorting Examples



    5.FAQ

    1. Could I have prices of your products?

    Welcome. Pls feel free to send us an email here. You will get our reply within 24 hours

    2. Can we print our logo/website/company name on machines?

    Yes, please advise the size and Pantone Code of the logo.

    3. What's the lead time for regular order?

    7-15 days for order quantity 1 set; For more than 3 sets, usually 20 days.

    4. Can I get a discount?

    Yes, for the order quantity more than 2 sets, please contact us to get the best price.

    5. Do you inspect the finished products?

    Yes, each step of production and finished products will be came out inspection by QC department before shipping.

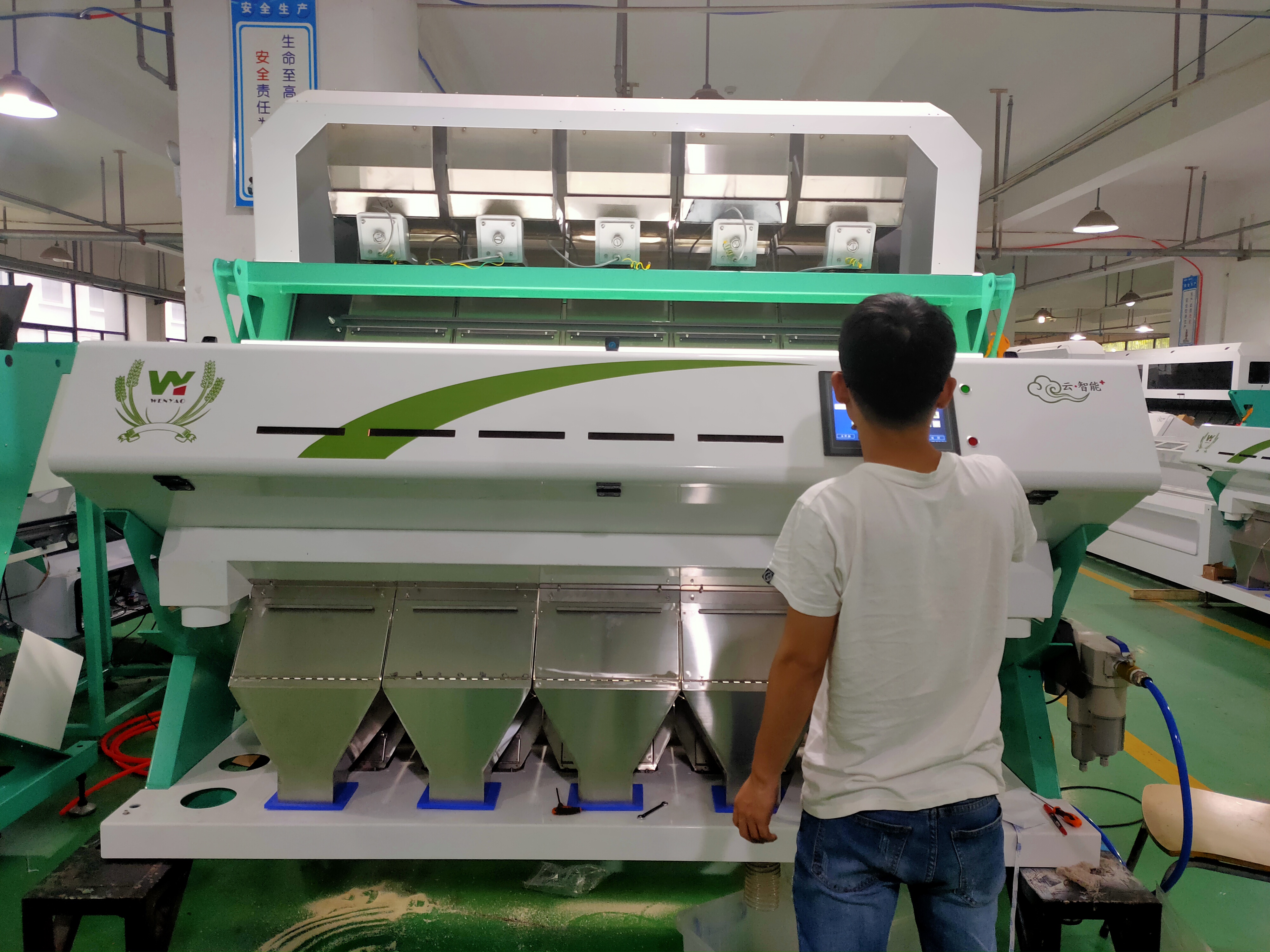

    6.Real Photo of WYCS5-320 in customer site


    7.Our Service:


    Pre-sales
    We will provide detailed solutions for your special requirement and help you know more about our color sorter.

    After-Sale Service
    We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.

    From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.

    Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.


    8.Packing and Delivery:
    Our products use professional wooden cases with PE plastic bag.
