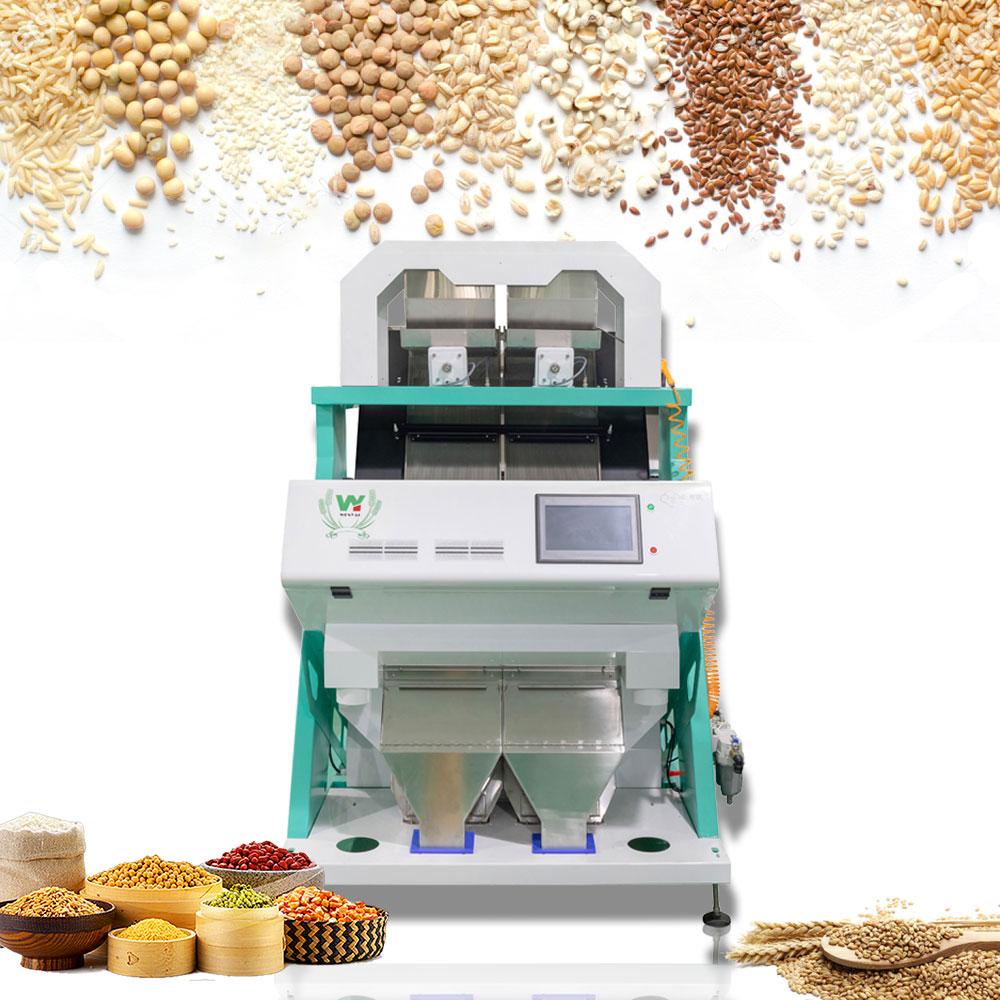

High Quality Cheapest Peach Gum Ccd Color Sorter Separator Machine
With Wifi Remote Control
Factory Directly Wholesale CCD RGB Coconut Color Sorter For Cotton
Seed Sesame Coix Seed Peddy Rice Color Sorting Machine With WIFI
What is color sorter?
Color Sorters are machines that are used on the production lines in bulk food
processing and other industries. They separate items by their
colours, detecting the colours of things that pass before them.
The rice sorting technology is according to the color differences
of rice (husked paddy) materials, using a high-resolution CCD
optical sensor to separate different stones, black rice, etc. It is
the final step after polishing rice with a
rice polisher. Sorting machines improve product quality and add social benefits.
How to get the correct size and price for wenyao color sorting
machine?
Please contact us according to the following questions if you need
color sorter prices:
Step 1. What kinds of the material are you planning to sort
processing?
rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice
Step 2. How much capacity(output) to sort processing for the raw materials per hour?
Such as: 200KGS, 500KGS, 1000KGS, 2000KGS and son on.
Step 3. In order to know the impurity rate of the raw materials
that are needed to be sorted, please send us 3 pictures as following:
1. Raw material picture
2. Accepted material picture
3. Rejected material picture
Main features:
1. Excellent sorting persormance: Advanced image acquisition system
+ intelligent image processing algorithm + high quality ejection
system=excellent output and rejection;
2. RGB full color tri-chromatic CCD image acquisition system: Top
industrial 5340 pixel CCD high speed linear scan imaging sensor
also first-class tailored camera lens for colorsorting with a
precision identifying tiny defects till 0.01m2;
3. Super ease operation system: Simple optical system design and
accurate in time auto calibration system plus simplified GUI design
help reduce complicacies of machine commissioning and running, easy
operation and maintenance secured;
4. Customized image processing algorithm: Intelligence algorithm
integrating image color difference and defect size difference;
5. Long-life software upgrading for free;
6. OEM service welcomed.
Technical Parameters:
| Model | WYCS1-64 | WYCS2-128 | WYCS3-192 |
| Chute/Channel | 1/64 | 2/128 | 3/192 |
| Throughput(t/h) | 1 Ton /H | 0.6-2.5 Ton /H | 1-4 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 0.75kw | 1.1kw | 1.6kw |
| Power Voltage | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 280kg | 450kg | 600kg |
| Diamension(L*W*H) | 780*1527*1543mm | 1250*1535*1832mm | 1620*1535*1832mm |
Examples of color sorting:
Q: Are you a factory or trading company?
A: ANHUI WENYAO Optoelectronic Technology Co., Ltd founded in 2007,
which combined with design, manufacture and selling. We manufacture
high-tech optical color sorter machine of sorting wheat, rice, tea,
melon seeds, grains, coarse cereals, nuts, dried vegetables, dried
seafood, plastics, ores, ect. Supply the service to customers from
Asia, the Middle East European, South Africa and African markets.
Q: How about your after-sales policy?
A: Timely, efficient, customer first
(1)Two-year warranty (life-time service)
(2)Online support and professional video guidance
(3)Complete training course through the internet
Q: How about the lead time?
A: Color sorter(Standard): 17 working days
Color sorter(belt): 17 working days
Optical color sorting machine (Standard):1months
