Enhanced Chili Seed Color Sorter Machine Pepper Seed Color Sorting
Machine
Feature:
1) High resolution full color camera 5400 CCD sensor. High definition
industrial lens.
2) Human-computer interaction. Image Capture. Holographic Imaging.
One-key automation. Automatic System Check.
3) Sorting master. High quality ejector.Intelligent lighting
source. Target orientation.
4) Identification expert. Size identification. Texture identification.
Shape identification. Edge identification. Sorting accuracy
infinitely close to 100%.
5) System Guard. Intelligent algorithm.Automatic rectification.
Targeted dedusting.
1. How to use the machine?
We will supply the Installation instructions or video and our
engineers will train your operators.
2. How long about the guarantee period?One year. And we supply lifelong software upgrade services for our
customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes
color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would
like to send 1 Engineer to guide for installation, then customer
should to pay the cost, including transaction of Engineer's visa,
transportation(air) for go abroad. and accommodation , local
transportation and security when the Engineer arrived.
Technical Parameters:
| Details as following |
| MODEL | WYCS10-640 |
| Chutes(channels) | 10(640) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥30:1 |
| Output(T/h) | 4-6 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 6.5 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 2600-5000 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 3630*1545*1860 |
| Weight(kgs) | 1800 |

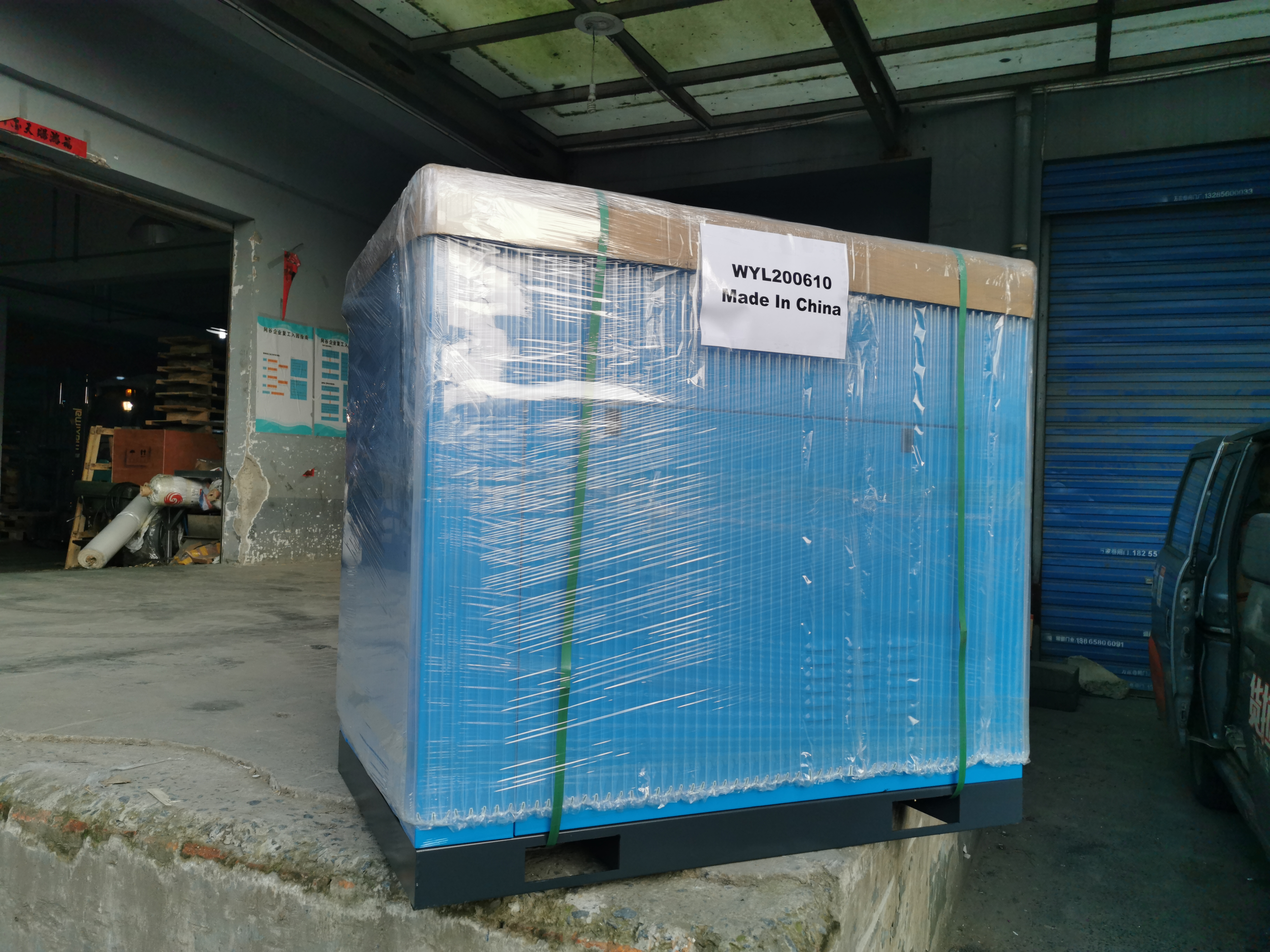

| Package | Plywood case |
| Package Size mm | 3764*1554*1871 |
Color sorter work principle:
The working principle of CCD color sorter CCD digital camera to
material is adopted signal acquisition.Analyze the collected
signals, handling, comparison, to eliminate beyond the value of the
material.
Color selection process as shown:
Color sorter at work,Feed hopper in the material under the action
of vibrator is uniform distribution in each chute,The CCD signal of
the whereabouts of the material in testing,If it is found that
there are unqualified material or impurities in the material,The
startup ejector to blow the defective goods in the hopper.(Above
only for the working process of the diagram,The actual material
shall prevail.)
Examples of color sorting:
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our
engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our
customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes
color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
Customer's Site :
Why choosing Wenyao
1,Advanced image acquisition system
color sorter machine use the high resolution monochromatic camera
or RGB camera(5000+ pixels) with high quality industrial lens to
achieve clear and accurate image acquisition.The camera could
capture the micro defects of material instantly.
2,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are
perfectly combined with shape sorting algorithms of size,circular
degree,texture etc,and successfully solved a series of high
difficulty color sorting problems,and dramatically enhance the
sorting accuracy.
3,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve
the channel smoothness and ware resistance to guarantee high
production.
4,High quality solenoid valve(ejector)
color sorters are equipped with high quality solenoid valve.The
valve has longer lifespan,high frequency and low air
consumption.The working frequency is 1000 times per second,which
guarantees the accurate and perfect ejecting.For the different
sizes and characteristics of material particle, NAGE optical
sorters use the solenoid valve of different sizes.
5,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high
intensity,long lifetime&perfect performance.
6,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system,
combined with the well-designed human-machine interface to simplify
the complexity of machine commissioning and use, ensuring the
simple operation and the machine is easy to learn and use.
Rice: white/black/red/yellow/barley rice
Wheat: buckwheat/quinoa/oatmeal
Corn: corn particles/white corn/ ellowcorn/black corn
Beans: soybeans/mungbeans/red beans/broad beans
Nuts: peanuts/cashew nuts/walnut meat/pine nuts Dry food: dry
onion/ raisins/dried chilli
Seeds: sunflower seeds/ rice seeds/ vegetable seeds
Industrial materials: plastic/scrap metal/ broken galss/
coal/ore/slag
