What is color sorter?
Color Sorters are machines that are used on the production lines in bulk food
processing and other industries. They separate items by their
colours, detecting the colours of things that pass before them.
The rice sorting technology is according to the color differences
of rice (husked paddy) materials, using a high-resolution CCD
optical sensor to separate different stones, black rice, etc. It is
the final step after polishing rice with a
rice polisher. Sorting machines improve product quality and add social benefits.
Work principle
Product Description:

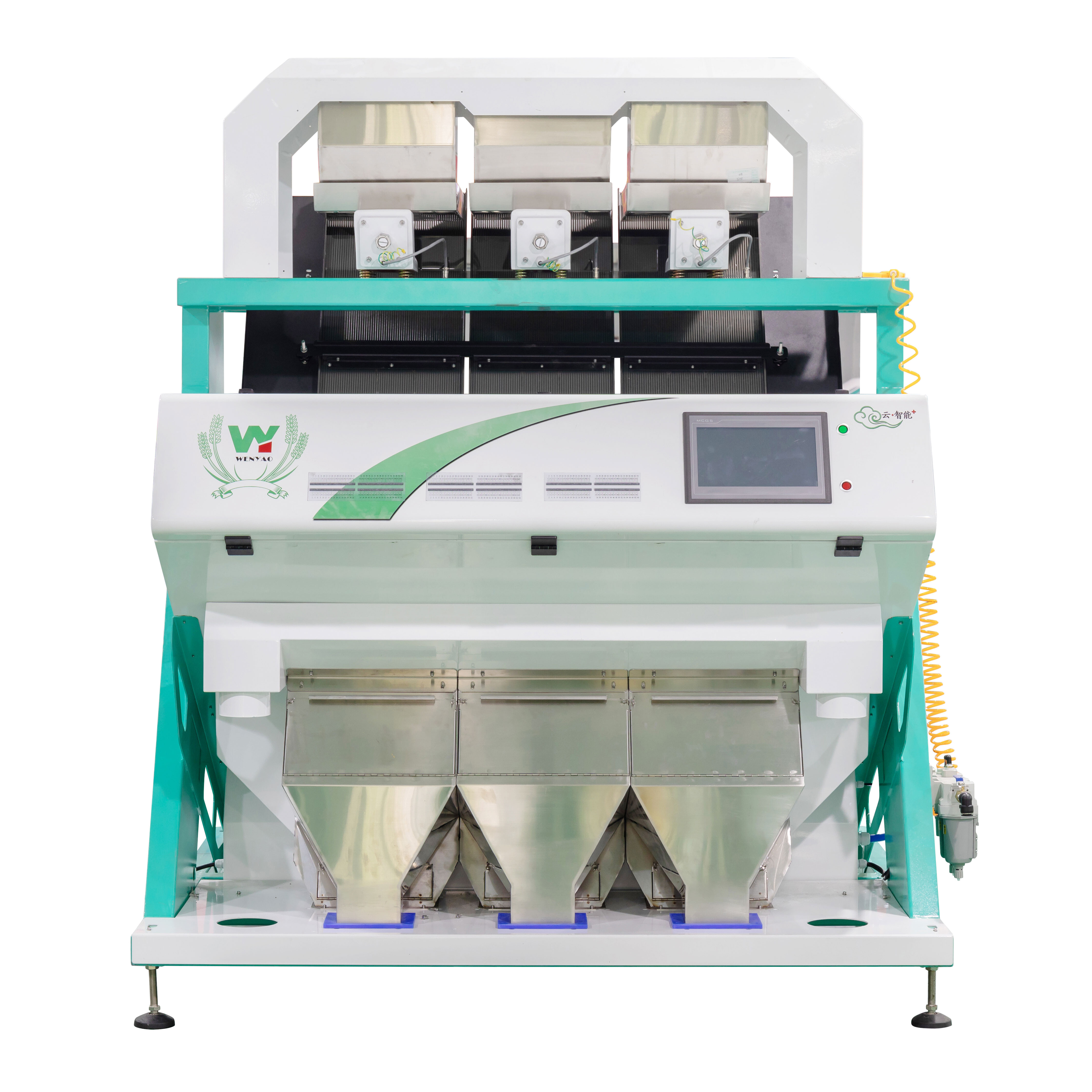

Machine name: Agriculture Machine Digital Intelligent Color CCD Camera Rice
Color Sorter/Sorting Machine By China Factory
Function : Remove unqualified pepper automatically
Working Principle: Optical principle, with latest CCD camera,LED
light
Models: Different channel (size) machines available for
choosing,depands on the required capacity.
How to get the correct size and price for wenyao color sorting
machine?
Please contact us according to the following questions if you need
color sorter prices:
Step 1.What kinds of the material are you planning to sort
processing?
rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice
Step 2.How much capacity(output) to sort processing for the raw materials per hour?
Such as: 200KGS, 500KGS, 1000KGS, 2000KGS and son on.
Step 3.In order to know the impurity rate of the raw materials that
are needed to be sorted, please send us 3 pictures as following:

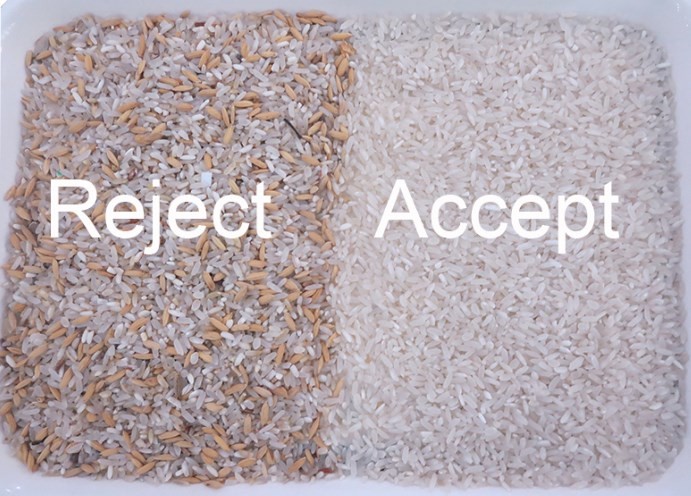

1. Raw material picture
2. Accepted material picture
3. Rejected material picture
PARTS DETAILS:
►Automatic computing and intelligent identification with high speed
camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning
time and period according to your need.
►Self design high frequency ejectors,It means high speed and
accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the
LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile
phone or computer to operate color sorter.
►Easy to operate touch screen with english,spanish,german,russian
and so on more than 20 languages.
Technical Parameters:
| MODEL | WYCS3-192 |
| Chutes/Channels | 3/192 |
| Throughput(t/h) | 3-4t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1.6kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <1.2M3/Min |
| Weight | 600kg |
| Diamension(L*W*H) | 1900*1700*2050mm |
Examples of color sorting:
Q:Are you a factory or trading company?
A:ANHUI WENYAO Optoelectronic Technology Co., Ltd founded in 2007,
which combined with design, manufacture and selling. We manufacture
high-tech optical color sorter machine of sorting wheat, rice, tea,
melon seeds, grains, coarse cereals, nuts, dried vegetables, dried
seafood, plastics, ores, ect. Supply the service to customers from
Asia, the Middle East European, South Africa and African markets.
Q:How about your after-sales policy?
A:Timely, efficient, customer first
(1)Two-year warranty (life-time service)
(2)Online support and professional video guidance
(3)Complete training course through the internet
Q:How about the lead time?
A:Color sorter(Standard): 17 working days
Color sorter(belt): 17 working days
Optical color sorting machine (Standard):1months
Packing & Delivery
